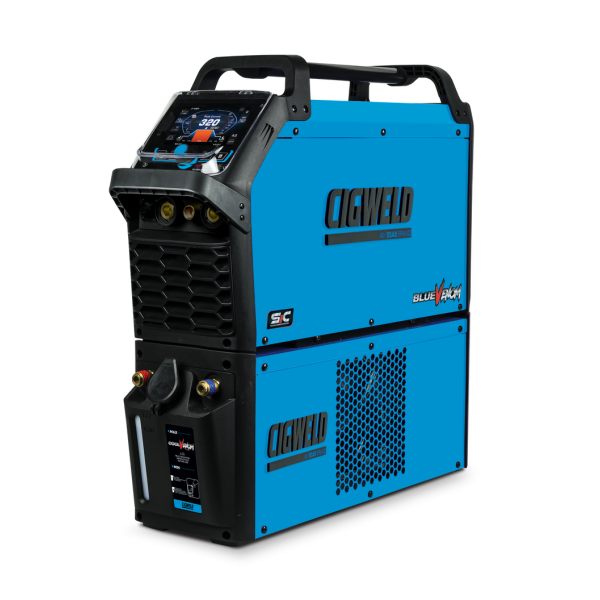

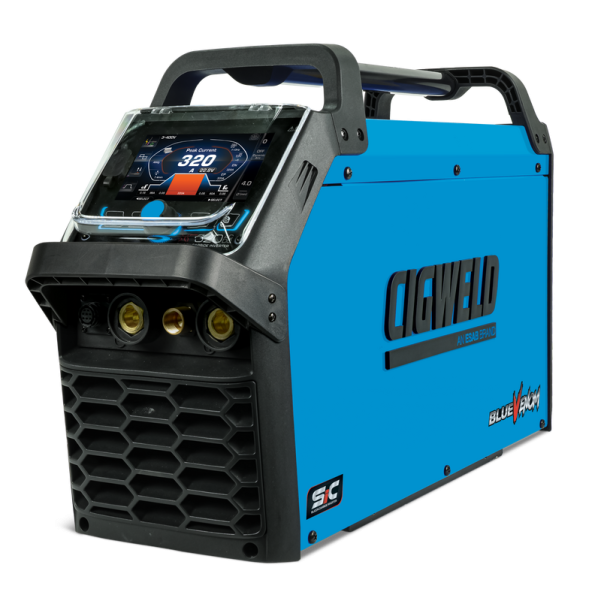

Cigweld W1300320 - BlueVenom 320A 3PH XF320 SiC AC/DC TIG Welder

Built for heavy-duty fabrication and industrial welding, the BlueVenom XF320 AC/DC SiC delivers 320 amps of advanced AC/DC TIG performance powered by Silicon Carbide (SiC) inverter technology. Combining outstanding arc stability, advanced pulse features, Dynamic Arc Control, and comprehensive parameter adjustment, it provides the precision, versatility, and reliability demanded by professional welders.

Featuring AC TIG, DC TIG, Mixed AC + DC TIG, synergic controls, advanced waveform customisation, and a comprehensive range of parameter adjustments, the XF320 AC/DC SiC is designed to deliver consistent, high-quality welding performance across aluminium, mild steel, and stainless steel applications.

Includes:

• BlueVenom XF250 AC/DC SiC Power Source
• DIMEX ELITE 8m 26F ‘Flex Head’ TIG Torch with Trigger Button and Remote Current Control
• Fully Equipped with TIG Kits
• 250A Twist lock Electrode Holder with 3m Lead
• 3m Quick Connect Gas Hose
• 250A Earth Clamp with 3m Lead
• BlueJet Regulator/Flowmeter
• Operating Manual
• 5-Year Warranty

Features:

• ADVANCED SIC INVERTER TECHNOLOGY - Next-generation Silicon Carbide (SiC) inverter technology delivers superior efficiency, enhanced arc stability, optimised thermal performance, and extended machine life.
• 250A AC/DC TIG PERFORMANCE - Delivers up to 250A output across AC TIG, DC TIG, and Mixed AC + DC TIG modes, providing the power required for demanding aluminium, mild steel, and stainless steel welding applications.
• SILICON CARBIDE (SiC) MOSFET - Advanced SiC semiconductors have a thermal conductivity 3x greater, and power losses 15-25% lower than conventional welders, improving temperature resistance, and increasing power density.
• HIGH FREQUENCY START - High Frequency (HF) Start provides clean, non-contact arc ignition, eliminating tungsten contamination and delivering reliable, consistent arc starts for precise TIG welding.
• ADVANCED TIG WELDING MODES - Customise your weld with advanced AC frequency, balance control, Pulse TIG, and Cold Weld TIG functions, giving greater control over arc characteristics, heat input, and precision welding results.
• 15A POWER INPUT - Designed with a 15A plug for increased power availability and reliable welding performance.
• Ultimate AC/DC TIG Performance. Uncompromising Control.

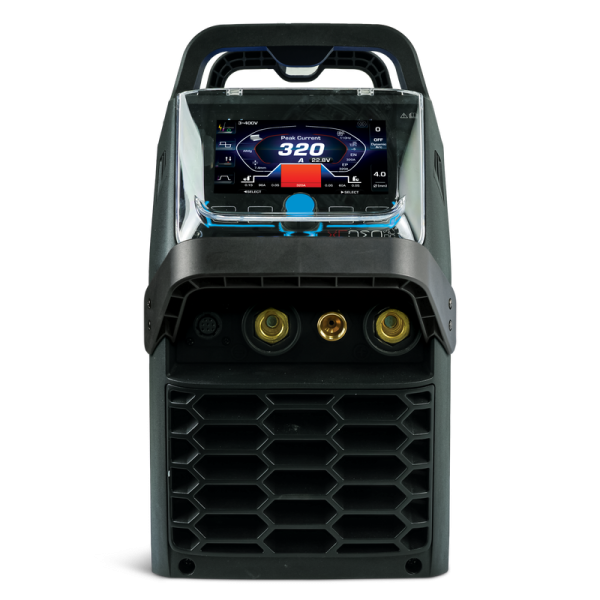

• INTUITIVE TOUCHSCREEN & SMART CONTROL - The intuitive 5" Full Colour Touchscreen provides quick access to all welding parameters, while synergic controls and 100 memory programs help reduce setup time and deliver repeatable results.
• READY FOR PROFESSIONAL ACCESSORIES - Compatible with water coolers and foot pedals, giving you the flexibility to create the ideal welding setup.

Specifications:

• Brand: Cigweld
• Dimensions (Power Source): (L) 660mm x (W) 190mm x (H) 370mm
• Weight (Power Source): 17.5kg
• Cooling: Fan Cooled
• Welder Type: AC/DC TIG Inverter Power Source
• Welding Processes: AC TIG, DC TIG, AC+DC TIG, Cold Weld TIG & Stick
• Pulse & High Frequency Capable: Yes
• Standards: AS 60974.1:2020 EN IEC 60974-10:2021
• Number of Phases: Single Phase
• Nominal Supply Voltage: 230 VAC ± 10%
• Nominal Supply Frequency: 50/60Hz
• Welding Current Range (Stick mode): 10-200A
• Welding Current Range (TIG Mode): 5-250A (DC) 10-250A (AC)
• Open Circuit Voltage (VRD On) Stick Weld Mode: <35V
• Open Circuit Voltage (VRD Off) Stick Weld Mode: 76V
• Effective Input Current (I1eff): 14.9 Amps (230VAC)
• Maximum Input Current (I1max): 29.0 Amps (230VAC)
• Minimum Single Phase Generator Recommendation: 8.5kVA@0.8PF
• Stick (MMAW) Welding Output, 40°C, 10 min: 200A @ 25%, 28.0V; 130A @ 60%, 25.2V; 100A @ 100%, 24.0V
• TIG DC (GTAW) Welding Output, 40°C, 10 min: 250A @ 28%, 20.0V; 170A @ 60%, 16.8V; 130A @ 100%, 15.2V
• TIG AC (GTAW) Welding Output, 40°C, 10 min: 250A @ 33%, 20.0V; 185A @ 60%, 17.4V; 145A @ 100%, 15.8V
• Protection Class: IP23S

Warranty:

• 5 Years Warranty Covered by Cigweld (Machine)

Downloads

• Info Sheet - CIGWELD XF320 ACDC SiC
• Operating Manual - CIGWELD BlueVeom XF250 XF320 ACDC SiC
• BlueVenom SiC Brochure
• BlueVenom SiC Selection Chart
