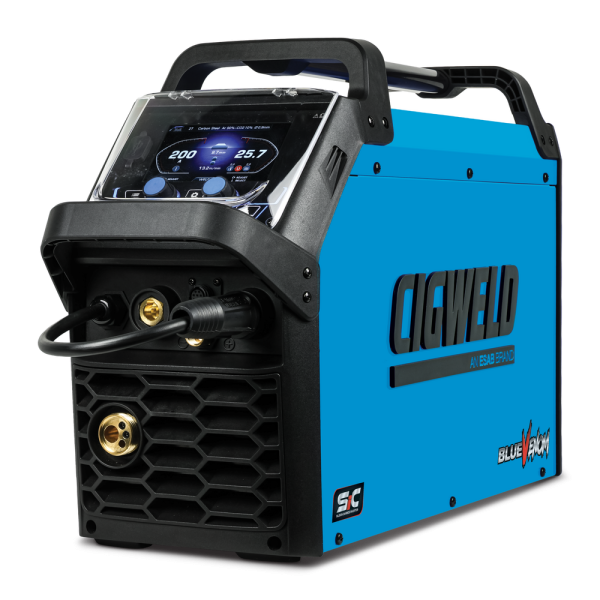

Cigweld W1400202 - BlueVenom 200A 15A XF200 6-in-1 SiC Multi Process Welder

The BlueVenom XF200 6-in-1 SiC is a professional multi-process welding platform designed for fabrication, aluminium welding, and workshop applications. Powered by advanced Silicon Carbide (SiC) inverter technology, it delivers exceptional efficiency, arc stability, and performance across MIG, TIG, and STICK processes.

Featuring AC TIG, Mixed AC/DC TIG, advanced pulse technologies, Dynamic Arc Control, and intelligent synergic operation, the XF200 6-in-1 SiC provides the versatility, precision, and control needed for demanding welding applications.

Includes:

• BlueVenom XF200-6 SiC Power Source
• 3m NEXARC DGX24 MIG Gun with 4-Button Control (BZ24 Style)
• DIMEX ELITE 4m 26F Flex Head Trigger Button Remote Control TIG Torch
• Fully Equipped with Fitted MIG Consumables, Spare Tip & TIG Kits
• 200A Twist Lock Electrode Holder with 3m Lead
• 3m Quick Connect Gas Hose
• 200A Earth Clamp with 3m Lead
• BlueJet Regulator/Flowmeter
• Mild Steel & Nylon Liner, Inlet/Outlet Guides
• Feed Rolls:
  • 0.8/0.9mm Knurled (x2, Fitted)
  • 0.8/0.9mm V-Groove (x2)
  • 1.0/1.2mm U-Groove (x2)
• Operating Manual

Features:

• Advanced Silicon Carbide (SiC) Inverter Technology - Next-generation Silicon Carbide (SiC) inverter technology delivers greater efficiency, enhanced arc stability, improved thermal performance and extended machine life in a compact, reliable package.
• TIG-Like Welds with the Speed of MIG - Produces smooth, high-quality aluminium welds with the appearance of TIG and the productivity of MIG, making it ideal for applications where both speed and finish are important.
• True 6-in-1 Multi-Process Performance - Supports MIG, Single Pulse MIG, Double Pulse MIG, HF AC TIG, HF DC TIG and Stick welding, providing exceptional versatility across a wide range of welding applications.
• Silicon Carbide (SiC) MOSFET Technology - Advanced SiC semiconductors offer up to three times greater thermal conductivity and 15–25% lower power losses than conventional welders, improving temperature resistance and increasing power density.
• High TIG Duty Cycle Performance - Advanced SiC inverter technology delivers a 50% TIG duty cycle, supporting demanding welding applications and longer operating periods.
• Advanced TIG Welding Functions - Features AC TIG, Mixed AC+DC TIG, Cold Weld TIG and Pulse TIG modes for greater control and precision when welding aluminium and other materials.
• 15A Power Input - Fitted with a 15A plug to provide increased power availability and reliable welding performance.
• Intuitive Touchscreen & Smart Controls - Synergic MIG, TIG and Stick controls simplify setup, while the 5-inch full-colour touchscreen and 100 programmable memory settings provide fast, repeatable welding results.
• Professional-Grade Welding Performance - Compatible with spool guns, push-pull MIG guns and foot pedals, making it suitable for a wide range of professional fabrication and workshop applications.
• Compact Power, Professional Performance - Compact and lightweight design combines portability with the performance required for industrial and professional welding tasks.

Specifications:

• Brand: CIGWELD
• Dimensions (Power Source): (L) 650mm x (W) 220mm x (H) 410mm
• Weight (Power Source): 21.7kg
• Cooling: Fan Cooled
• Welder Type: Multi Process Inverter Power Source
• Welding Processes: MIG, Single Pulse MIG, Double Pulse MIG, HF DC TIG, HF AC TIG, Stick, Mixed AC+DC TIG, Cold Weld TIG
• Pulse & High Frequency Capable: Yes
• Standards: AS 60974.1:2020, EN IEC 60974-10:2021
• Number of Phases: Single Phase
• Nominal Supply Voltage: 230VAC ±10%
• Nominal Supply Frequency: 50/60Hz
• Welding Current Range (MIG Mode): 30-200A
• Welding Current Range (Stick Mode): 10-200A
• Welding Current Range (TIG Mode): 5-200A (DC), 10-200A (AC)
• Nominal DC Open Circuit Voltage (MIG): 78V
• Open Circuit Voltage (VRD On - Stick): <35V
• Open Circuit Voltage (VRD Off - Stick): 78V
• Effective Input Current (I1eff): 14.8A (230VAC)
• Maximum Input Current (I1max): 29.4A (230VAC)
• Minimum Single Phase Generator Recommendation: 8.5kVA @ 0.8PF
• MIG (GMAW) Welding Output: 200A @ 32%, 24.0V; 145A @ 60%, 21.3V; 115A @ 100%, 19.8V
• Stick (MMAW) Welding Output: 200A @ 25%, 28.0V; 130A @ 60%, 25.2V; 100A @ 100%, 24.0V
• TIG AC (GTAW) Welding Output: 200A @ 50%, 18.0V; 185A @ 60%, 17.4V; 145A @ 100%, 15.8V
• TIG DC (GTAW) Welding Output: 200A @ 35%, 18.0V; 155A @ 60%, 16.2V; 120A @ 100%, 14.8V
• Protection Class: IP23S
• Spool Gun Compatible: Yes, MIG Manual/Synergic Modes Only
• Push-Pull Gun Compatible: Yes, All MIG Modes

Warranty:

• 5 Years Warranty Covered by Cigweld (Machine)

Downloads

• Info Sheet - CIGWELD XF200-6
• Operating-Manual-CIGWELD-BlueVenom-XF195-XF200-XF230-SiC
• BlueVenom SiC Brochure
• BlueVenom SiC Selection Chart
