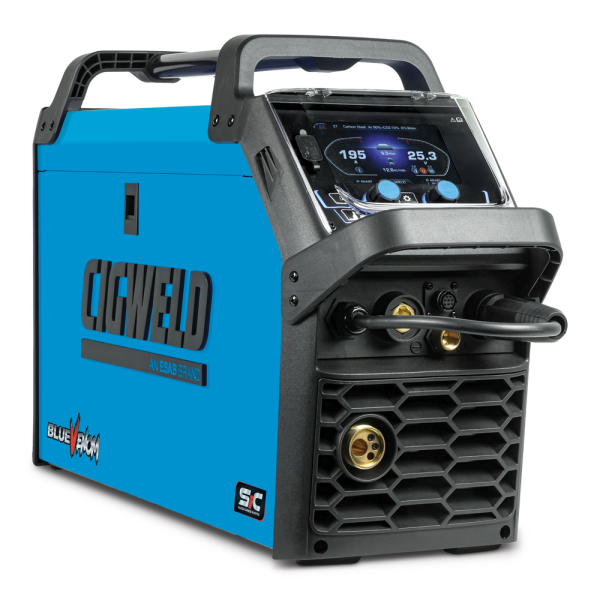

Cigweld W1400195 - BlueVenom 195A 15A XF195 5-in-1 SiC Multi Process Welder

Introducing the BlueVenom XF195 SiC, a high-performing 195 Amp multiprocess welder powered by the latest Silicon Carbide (SiC) inverter technology, engineered to deliver consistent results across a broad range of materials and applications. Its exceptional versatility allows smooth transitions from everyday mild steel fabrication to precision TIG-like showcase welds, supported by five operating modes: MIG, MIG Single Pulse, MIG Double Pulse, HF DC TIG, and Stick. Further advanced modes include Cold Weld TIG and Pulse on both TIG and Stick.

Powered by a standard 15A, single-phase 230V supply and enhanced with Power Factor Correction (PFC) technology, the BlueVenom XF195 SiC delivers improved energy efficiency and stable performance, even when operating with extended cable lengths. With an IP23S rating, it is protected against various weather conditions, making it ready for industrial and outdoor environments.

Includes:

• BlueVenom XF195 SiC Power Source
• 3m NEXARC DGX24 MIG Gun with 4-Button Control, BZ24 Style
• DIMEX ELITE 4m 17F ‘Flex Head’ TIG Torch
• Fully Equipped with Fitted MIG Consumables, Spare Tip & TIG Kits
• 200A Twist lock Electrode Holder with 3m Lead
• 3m Quick Connect Gas Hose
• 200A Earth Clamp with 3m Lead
• BlueJet Regulator/Flowmeter
• Mild Steel & Nylon Liner, Inlet/Outlet Guides
• Feedrolls: 0.8/0.9mm (x2) Knurled (Fitted),0.8/0.9mm V (x2), 1.0/1.2mm U (x2)
• Operating Manual
• 5-Year Warranty

Features:

• ADVANCED SILICON CARBIDE (SIC) TECHNOLOGY - Next-generation Silicon Carbide (SiC) inverter technology delivers greater efficiency, enhanced arc stability, improved thermal performance, and extended machine life.
• 5-IN-1 MULTI-PROCESS CAPABILITY - MIG, Single Pulse MIG, Double Pulse MIG, HF DC TIG, and Stick, plus Cold Weld TIG and Pulse modes for TIG and Stick applications.
• SILICON CARBIDE (SiC) MOSFET - Advanced SiC semiconductors provide 3x greater thermal conductivity and 15-25% lower power losses than conventional welders.
• INTUITIVE TOUCHSCREEN & PARAMETER CONTROL - A 5" Full Colour Touchscreen provides access to welding parameters with synergic and manual adjustment options.
• TIG-LIKE WELD APPEARANCE WITH MIG SPEED - Single and Double Pulse MIG modes produce TIG-like welds while retaining the speed advantages of MIG welding.
• 15A POWER INPUT - Designed with a 15A plug for increased power availability and reliable welding performance.
• EFFICIENT 15A OPERATION WITH PFC TECHNOLOGY - Operates from a 230V single-phase 15A supply with Power Factor Correction technology.
• 100 MEMORY PROGRAMS - Save and recall up to 100 welding parameter settings for switching between jobs.

Specifications:

• Brand: Cigweld
• Dimensions (Power Source): (L) 650mm x (W) 220mm x (H) 410mm
• Weight (Power Source): 19.5kg
• Cooling: Fan Cooled
• Welder Type: Multi Process Inverter Power Source
• Welding Processes: MIG, MIG Single Pulse, MIG Double Pulse, HF DC TIG, Stick, Cold Weld Tig
• Pulse & High Frequency Capable: Yes
• Standards: AS 60974.1:2020 EN IEC 60974-10:2021
• Number of Phases: Single Phase
• Nominal Supply Voltage: 230 VAC ± 10%
• Nominal Supply Frequency: 50/60Hz
• Welding Current Range (MIG mode): 30-200A
• Welding Current Range (Stick mode): 10-200A
• Welding Current Range (TIG Mode): 5-200A (DC)
• Nominal DC Open Circuit Voltage MIG Weld Mode: 72V
• Open Circuit Voltage (VRD On) Stick Weld Mode: <35V
• Open Circuit Voltage (VRD Off) Stick Weld Mode: 72V
• Effective Input Current (I1eff): 14.9 Amps (230VAC)
• Maximum Input Current (I1max): 28.3 Amps (230VAC)
• Minimum Single Phase Generator Recommendation: 8kVA@0.8PF
• MIG (GMAW) Welding Output, 40°C, 10 min: 200A @ 35%, 24.0V; 155A @ 60%, 21.8V; 120A @ 100%, 20.0V
• Stick (MMAW) Welding Output, 40°C, 10 min: 200A @ 28%, 28.0V; 135A @ 60%, 25.4V; 105A @ 100%, 24.2V
• TIG (GTAW) Welding Output, 40°C, 10 min: 200A @ 60%, 18.0V; 155A @ 100%, 16.2V
• Protection Class: IP23S
• Spool Gun Compatible: Yes, MIG Manual/Synergic modes only
• Push-Pull Gun Compatible: Yes, all MIG modes

Warranty:

• 5 Years Warranty Covered by Cigweld (Machine)

Downloads

• Info Sheet - CIGWELD XF195 SiC
• Operating-Manual-CIGWELD-BlueVenom-XF195-XF200-XF230-SiC
• BlueVenom SiC Brochure
• BlueVenom SiC Selection Chart
