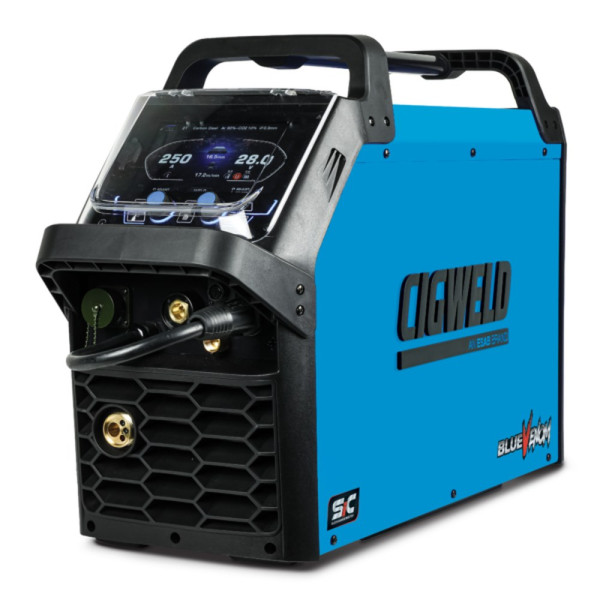

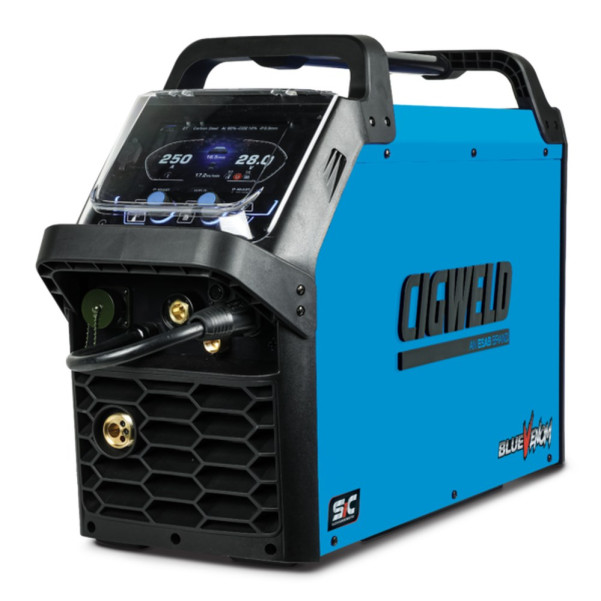

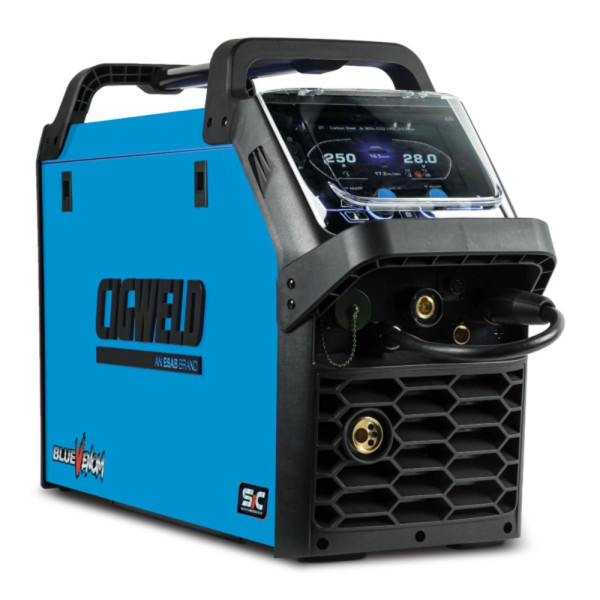

Cigweld W1400254 - BlueVenom 250A 15A XF250 6-in-1 SiC Multi Process Welder

The BlueVenom XF250 6-in-1 SiC is a multi-process welding system engineered to deliver exceptional performance, versatility, and control. Featuring advanced Silicon Carbide (SiC) inverter technology and up to 250 amps of output, it supports MIG, Pulse MIG, Double Pulse MIG, AC TIG, DC TIG, Mixed TIG, TIG Cold Weld, and STICK welding in a single platform.

Featuring a 7-inch full colour touchscreen, synergic controls, advanced waveform customisation, and compatibility with a wide range of accessories, the XF250 6-in-1 SiC provides the precision, flexibility, and performance required for demanding fabrication, aluminium welding, and industrial applications.

Includes:

• BlueVenom XF250-6 SiC Power Source
• 3m NEXARC DGX36 OLED MIG Gun with 3-Button Control, BZ36 Style
• DIMEX ELITE 4m 26F ‘Flex Head’ TIG Torch with Trigger Button and Remote Current Control
• Fully Equipped with Fitted MIG Consumables, Spare Tip & TIG Kits
• 250A Twist Lock Electrode Holder with 3m Lead
• 3m Quick Connect Gas Hose
• 250A Earth Clamp with 3m Lead
• BlueJet Regulator/Flowmeter
• Mild Steel & Nylon Liner, Inlet/Outlet Guides
• Feedrolls: 0.8/0.9mm Knurled (x2, Fitted), 0.8/0.9mm V-Groove (x2), 1.0/1.2mm U-Groove (x2)
• Operating Manual
• 5-Year Warranty

Features:

• Advanced SiC Inverter Technology - Delivers up to 250A output with exceptional efficiency, arc stability, thermal performance and high-duty-cycle reliability.
• 6-in-1 Multi-Process Welding - Supports MIG, Pulse MIG, Double Pulse MIG, AC/DC TIG, Mixed TIG, TIG Cold Weld and Stick welding with Pulse.
• Dynamic Arc Control - Intelligent parameter control enables precise adjustment for different material thicknesses and welding preferences.
• Precision Pulse Control - Pulse TIG provides excellent control, while Single and Double Pulse MIG combine TIG-style weld appearance with MIG productivity.
• Silicon Carbide (SiC) MOSFET - SiC semiconductors provide three times greater thermal conductivity and 15–25% lower power losses than conventional welders.
• Smart Setup & Performance - Features a 7-inch full-colour touchscreen, NEXARC DGX36 OLED MIG gun and a 100-job memory bank.
• Flexible Wire Feed System - Accommodates 5kg (200mm) and 15kg (300mm) wire spools.
• Built for Industrial Environments - IP23S rated with PFC, VRD, a 4-gear wire-drive system and compatibility with spool guns, push-pull guns, water coolers and external wire feeders.

Specifications:

• Brand: CIGWELD
• Model: W1400254
• Dimensions (Power Source): (L) 750mm x (W) 260mm x (H) 480mm
• Weight (Power Source): 31.2kg
• Cooling: Fan Cooled
• Welder Type: Multi Process Inverter Power Source
• Welding Processes: MIG, Pulse MIG, Double Pulse MIG, AC TIG, DC TIG, AC+DC TIG, Cold Weld TIG & Stick
• Pulse & High Frequency Capable: Yes
• Standards: AS 60974.1:2020, EN IEC 60974-10:2021
• Number of Phases: Single Phase
• Nominal Supply Voltage: 230 VAC ± 10%
• Nominal Supply Frequency: 50/60Hz
• Welding Current Range (MIG Mode): 30-250A
• Welding Current Range (Stick Mode): 10-250A
• Welding Current Range (TIG Mode): 5-250A (DC), 10-250A (AC)
• Nominal DC Open Circuit Voltage MIG Weld Mode: 78V
• Open Circuit Voltage (VRD On) Stick Weld Mode: <35V
• Open Circuit Voltage (VRD Off) Stick Weld Mode: 78V
• Effective Input Current (I1eff): 14.9 Amps (230VAC)
• Maximum Input Current (I1max): 39.0 Amps (230VAC)
• Minimum Single Phase Generator Recommendation: 11.5kVA @ 0.8PF
• MIG (GMAW) Welding Output, 40°C, 10 min: 250A @ 17%, 26.5V; 135A @ 60%, 20.8V; 105A @ 100%, 19.3V
• Stick (MMAW) Welding Output, 40°C, 10 min: 250A @ 14%, 30.0V; 120A @ 60%, 24.8V; 95A @ 100%, 23.8V
• TIG AC (GTAW) Welding Output, 40°C, 10 min: 250A @ 34%, 20.0V; 190A @ 60%, 17.6V; 145A @ 100%, 15.8V
• TIG DC (GTAW) Welding Output, 40°C, 10 min: 250A @ 29%, 20.0V; 175A @ 60%, 17.0V; 135A @ 100%, 15.4V
• Protection Class: IP23S
• Wire Spool Size(s): 5kg (200mm) & 15kg (300mm)
• Spool Gun Compatible: Yes, MIG MAN/SYN modes only
• Push-Pull Gun Compatible: Yes, all MIG modes
• Water Cooler Option: Yes
• Remote Feeder Option: Yes

Warranty:

• 5 Years Warranty Covered by Cigweld (Machine)
