Cigweld W1400210 - XF210-6 6-in-1 Blue Venom Multiprocess Plant Welder with PFC

Meet the BlueVenom XF2106-a high-performance 210A 6in1 welder built to handle any job across a wide range of materials and applications. The versatility of this machine empowers you to seamlessly transition from welding anything from mild steel chassis to precision Aluminium showcase pieces, with 8 easily selectable modes: MIG, MIG Single Pulse, MIG Double Pulse, AC TIG, DC TIG, AC+DC TIG, Cold Weld TIG and Stick! Running off a 15A input plug, this single phase 230V workhorse also boasts Power Factor Correction (PFC)providing greater power efficiencies and more stable operation especially when using extension leads.

Get the perfect TIG welds you need using one of the 11 in-built Arc Wave settings to give you even more control over your job. Select from the following AC Arc Wave forms:Square, Sine, Triangle, Square-Sine, Square-Triangle, Sine Square, Sine Triangle, Triangle Square, Triangle Sine, Trapezoidal, Soft Square. You also have the flexibility to run the unit with the help of “AUTOSET”guiding you through each step to get welding, from Plate Thicknessselection to choosing your Joint Type:Butt, Lap, Fillet and Corner –it couldn’t be easier! If you know what you want, take full control of the machine through its Manual mode and run the unit your way!

If you need to do more than showcase Aluminium TIG welds, the BlueVenom XF2106continues its value packed offer by including multiple processes and features to suit various applications. Need the speed of MIG but not the ultra-precision of TIG? Choose from Single or Double Pulse MIGto produce welds similar toTIG but with more speed, larger jobs and thicker joints. Stick with Pulseproduces cleaner welds (over standard Stick) with less spatter due to better arc and heat control –better for vertical or overhead welds.

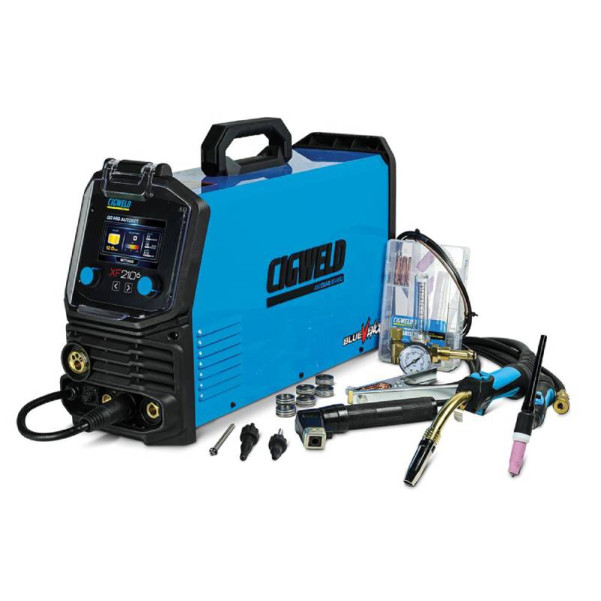

Includes:

• 1 x BlueVenom XF2106 6-in-1 Power Source
• 1 x 3m BZ24 MIG Gun with 4-Button Control (W4020012)
• 1 x 4m Flame Series WP26F Flex Head TIG Torchwith Current Control and On/Off Button (W4022015)
• 1 x 200A Twist lock Electrode Holder with 3m Lead (WS42550)
• 1 x 2m Quick Connect Gas Hose (W7004913)
• 1 x 300A Earth Clamp with 3m Lead (WS42550)
• 1 x BlueJetRegulator/Flowmeter (201031)
• 1 x Mild Steel Liner (Fitted), Nylon Liner, Inlet/Outlet Guides (CML50912)
• 2 x Feedrolls: 0.8/0.9mm (FR302210V0809)(Fitted)
• 2 x 0.8/0.9mm Knurled (FR302210K0809)
• 2 x 1.0/1.2mm U-Groove (FR302210U1012)
• 1 x Operating Manual

Features:

• Memory: With 60x Memoryprovisions you will be able to save and load job parameters on the fly to suit the job at hand
• Intuitive Display: Powered by a 5” Full ColourLCDdisplay that has been optimisedfor ease of navigation so you can spend more time welding and less time searching for settings
• 6-in-1 Multi-Process Capability: Combines MIG, Pulse MIG, AC/DC TIG, Cold Weld TIG, and Stick welding in one unit
• 8 Selectable Welding Modes: MIG, Single Pulse MIG, Double Pulse MIG, AC TIG, DC TIG, AC+DC TIG, Cold Weld TIG, and Stick
• Power Factor Correction (PFC): Improves efficiency and ensures stable performance, especially when using extension leads
• AUTOSET Function: Step-by-step setup assistance based on plate thickness and joint type
• Manual Mode Control: Full parameter customisation for experienced users
• 11 Arc Waveforms (AC TIG): Advanced arc shaping for precise weld control
• Pulse MIG Technology: Produces cleaner, TIG-like welds with higher speed and reduced heat input
• Double Pulse MIG: Improved control and finish for aluminium welding
• Cold Weld TIG Mode: Minimises heat distortion for thin materials
• Pulse Stick Welding: Reduces spatter and improves arc stability
• 60 Memory Presets: Save and recall welding settings instantly
• 5” Full Colour LCD Display: Clear, user-friendly interface
• Wide Amperage Range: Suitable for light to heavy-duty applications
• VRD Safety Feature: Voltage Reduction Device for safer Stick welding
• Generator Compatible: Minimum 8.5kVA recommended
• Single Phase 230V Operation: Runs on a standard 15A outlet
• Heavy-Duty Build: Designed for demanding workshop environments

Specifications:

• Power Supply (Voltage): Single Phase –15A Plug 230V +/-10%
• Australian Standard: AS 60974.1:2020
• Nominal Supply Frequency: 50/60Hz
• Supply Lead & Plug: 15 Amp
• Minimum Generator Required: 8.5kVA (0.8 Power Factorat Max Amps)
• Amperage Range:
  • MIG: 30A –210A
  • TIG: 10A –210A
  • STICK: 40A –185A
• MIG Duty Cycle @ 40°:
  • 210A @ 25%, 24.5V
• TIG Duty Cycle @ 40°:
  • 210A @ 35%, 18.4V
• STICK Duty Cycle @ 40°
  • 185A @ 25%, 27.4V
• Voltage Reduction Device VRD: Yes on Stick Mode (<35V)
• Protection Class: IP23S
• Dimensions (L x W x H): 610mm x 210mm x 370mm
• Weight:
  • Welder: 22kg
  • Package: 36kg

Warranty:

• 3 Year Warranty Covered by Cigweld
