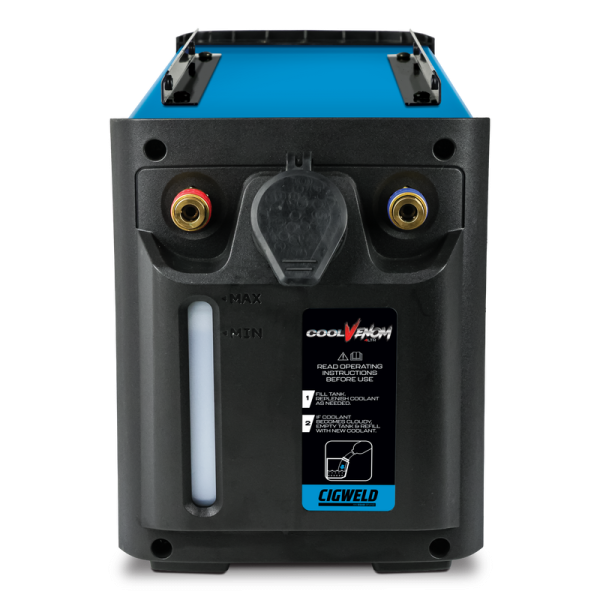

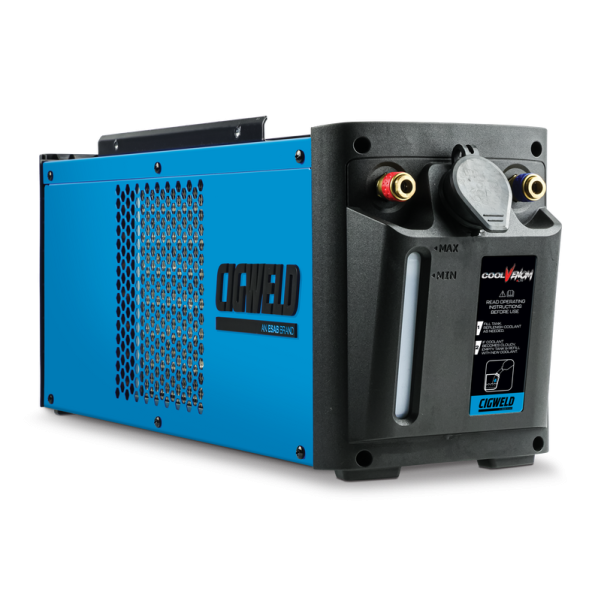

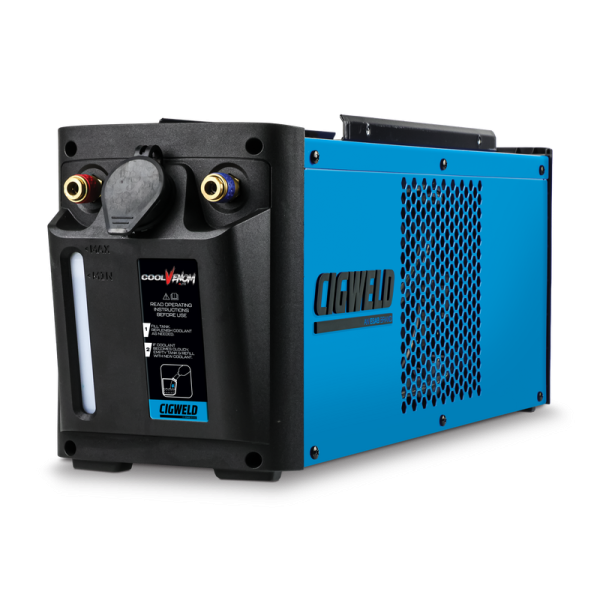

Cigweld W4018240 - CoolVenom 4 Litre Water Cooler
The CoolVenom 4LTR is a welding water cooler designed for the BlueVenom XF250 AC/DC SiC and BlueVenom XF320 AC/DC SiC. Ideal for lengthy welding runs, it helps mitigate heat and extend the life of water-cooled TIG torches and MIG guns.
Featuring a 150mm fan and 22 advanced steel tube radiators, the CoolVenom 4LTR delivers fast and effective heat dissipation, while its stackable design allows the power source to be securely mounted on top for a strong and stable setup.
Includes:
- CoolVenom 4LTR Water Cooler
- CoolVenom Interconnection Lead
- 4x Mounting Brackets
- Operating Manual
Features:
- Designed for the BlueVenom SiC Range - Compatible with BlueVenom XF250 AC/DC SiC and BlueVenom XF320 AC/DC SiC.
- 4 Litre Water Reservoir - Ideal for lengthy welding runs while extending the life of water-cooled TIG torches and MIG guns.
- 150mm Cooling Fan - Large cooling fan provides fast and effective heat dissipation.
- 22 Advanced Steel Tube Radiators - Efficient cooling system designed for continuous welding applications.
- Stackable Design - Power Source mounts securely on top of the water cooler for a strong and stable setup.
- High Cooling Performance - Delivers up to 1.2kW cooling power with a maximum flow rate of 10L/min.
- Professional Industrial Design - IP23S rated for workshop and industrial environments.
- 5-Year Warranty - Backed by CIGWELD's 5-Year Warranty.
Specifications:
- Brand: CIGWELD
- Model: W4018240
- Cooling Type: Welding Water Cooler
- Nominal Supply Voltage: 230 - 400VAC ±10%
- Australian Standard: EN IEC 60974-2:2019
- Nominal Supply Frequency: 50/60Hz
- Maximum Input Current: 1.0 Amps
- Reservoir Volume: 4L
- Maximum Flow Rate: 10L/min
- Cooling Power: 1.2kW @ 1L/min
- Maximum Pressure: 0.25Mpa
- Maximum Torch Length: 25m
- Inlet/Outlet Pairs: 1
- Dry Weight (Water Cooler): 9.1kg
- Weight (Package): 11.5kg
- Dimensions (Water Cooler): 590mm x 190mm x 240mm
- Dimensions (Package): 650mm x 240mm x 310mm
- Protection Class: IP23S
- Compatible Power Sources: BlueVenom XF250 AC/DC SiC, BlueVenom XF320 AC/DC SiC
- Warranty: 5 Years
