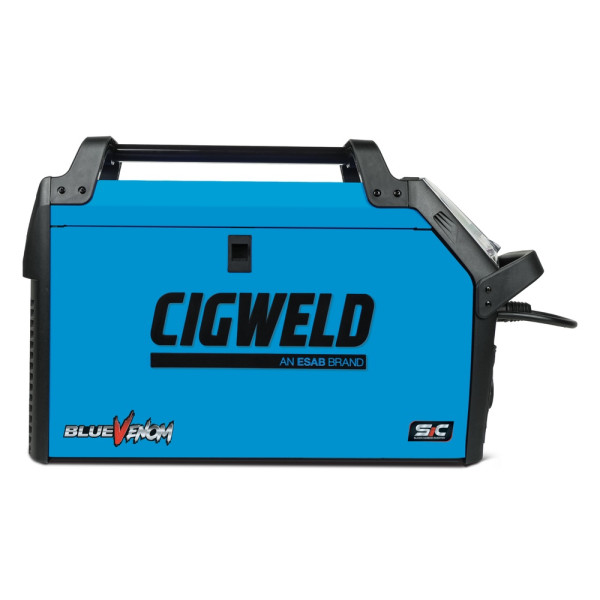

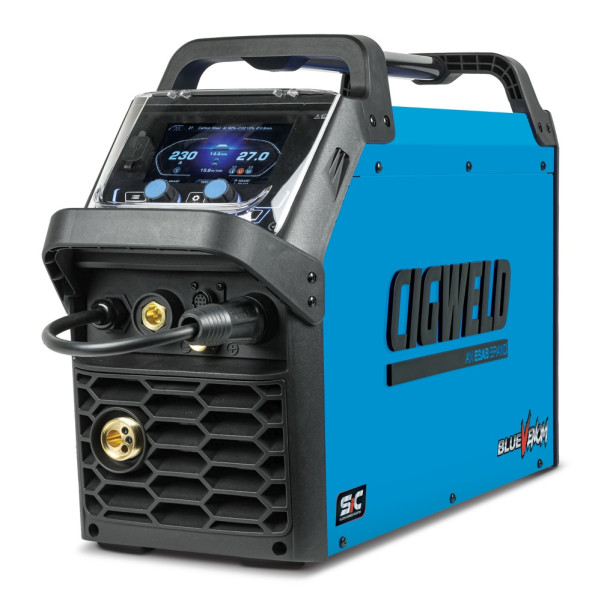

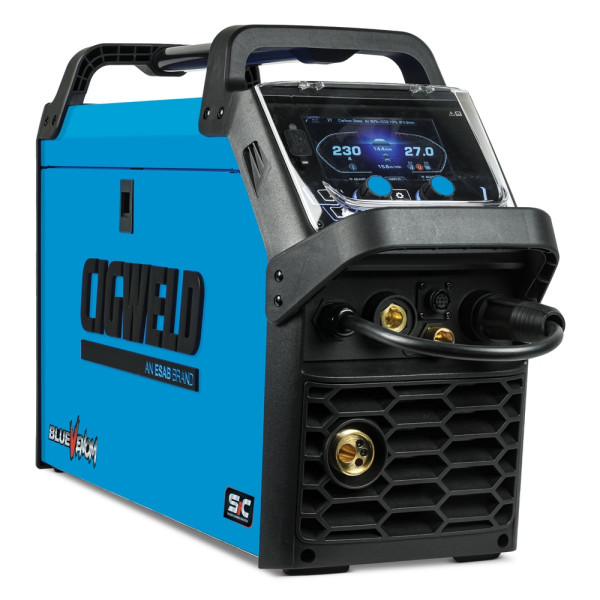

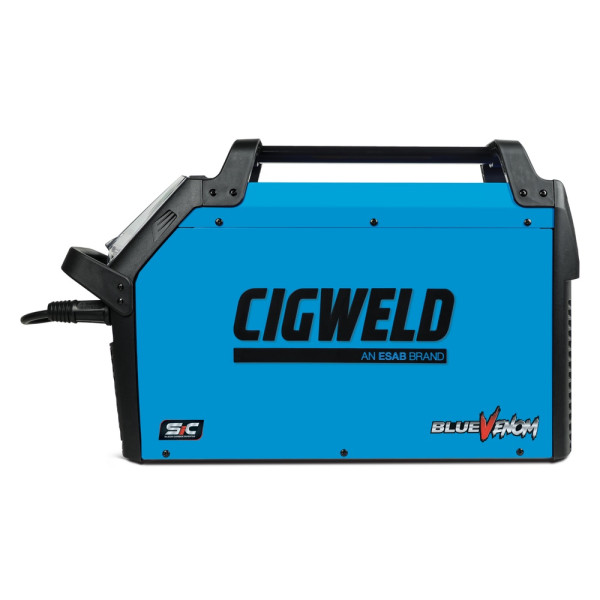

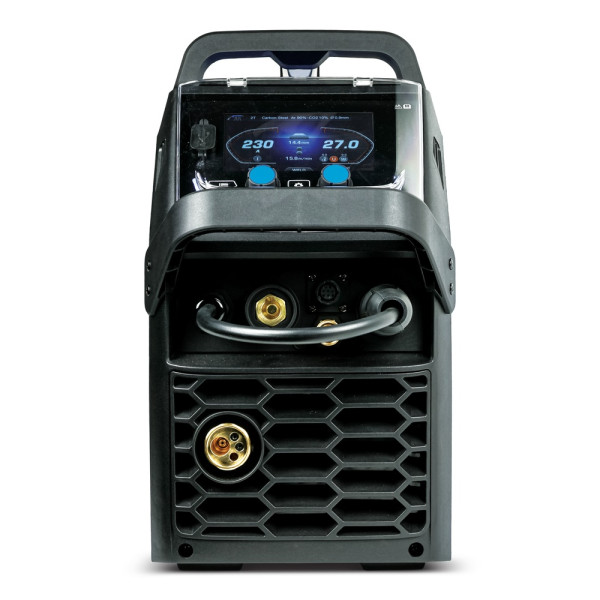

Cigweld W1400230 - BlueVenom 230A 15A XF230 6-in-1 SiC Multi Process Welder

The BlueVenom XF230 6-in-1 SiC is a premium multi-process welding platform built for professional fabrication, aluminium welding, and industrial applications. Powered by advanced Silicon Carbide (SiC) inverter technology, it delivers exceptional arc stability, efficiency, and performance across MIG, TIG, and STICK welding processes.

Featuring AC TIG, Mixed AC + DC TIG, advanced pulse technologies, Dynamic Arc Control, and intelligent synergic operation, the XF230 6-in-1 SiC provides the versatility, precision, and control required for demanding welding applications. Combined with an intuitive 5-inch full colour touchscreen, professional-grade accessories, and advanced welding functionality, it is designed to deliver consistent, high-quality results across a broad range of materials and applications.

Includes:

• BlueVenom XF230-6 SiC Power Source
• 3m NEXARC DGX24 MIG Gun with 4-Button Control, BZ24 Style
• DIMEX ELITE 4m 26F Flex Head Trigger Button Remote Control TIG Torch
• Fully Equipped with Fitted MIG Consumables, Spare Tip & TIG Kits
• 300A Twist Lock Electrode Holder with 3m Lead
• 3m Quick Connect Gas Hose
• 300A Earth Clamp with 3m Lead
• BlueJet Regulator/Flowmeter
• Mild Steel & Nylon Liner, Inlet/Outlet Guides
• Feed Rolls:
  • 0.8/0.9mm Knurled (x2, Fitted)
  • 0.8/0.9mm V-Groove (x2)
  • 1.0/1.2mm U-Groove (x2)
• Operating Manual
• 5-Year Warranty

Features:

• Advanced Silicon Carbide (SiC) Inverter Technology - Next-generation Silicon Carbide (SiC) inverter technology delivers greater efficiency, enhanced arc stability, improved thermal performance and extended machine life in a compact, reliable package.
• TIG-Like Welds with the Speed of MIG - Produces smooth, high-quality aluminium welds with the appearance of TIG and the productivity of MIG.
• True 6-in-1 Multi-Process Performance - Supports MIG, Single Pulse MIG, Double Pulse MIG, HF AC TIG, HF DC TIG and Stick welding.
• Silicon Carbide (SiC) MOSFET Technology - Advanced SiC semiconductors provide greater thermal conductivity, lower power losses and increased power density.
• High TIG Duty Cycle Performance - High-duty cycle output supports demanding welding applications and extended operating periods.
• Advanced TIG Welding Functions - Includes AC TIG, Mixed AC+DC TIG, Cold Weld TIG and Pulse TIG modes for maximum welding control.
• 15A Power Input - Fitted with a 15A plug for reliable welding performance.
• Intuitive Touchscreen & Smart Controls - Synergic MIG, TIG and Stick controls with a 5-inch full colour touchscreen and 100 programmable memory settings.
• Professional-Grade Welding Performance - Compatible with spool guns, push-pull MIG guns and foot pedals.
• Compact Power, Professional Performance - Compact inverter design ideal for workshop, fabrication and industrial use.

Specifications:

• Brand: CIGWELD
• Dimensions (Power Source): (L) 650mm x (W) 220mm x (H) 410mm
• Weight (Power Source): 21.7kg
• Cooling: Fan Cooled
• Welder Type: Multi Process Inverter Power Source
• Welding Processes: MIG, Single Pulse MIG, Double Pulse MIG, HF DC TIG, HF AC TIG, Stick, Mixed AC+DC TIG, Cold Weld TIG
• Pulse & High Frequency Capable: Yes
• Standards: AS 60974.1:2020, EN IEC 60974-10:2021
• Number of Phases: Single Phase
• Nominal Supply Voltage: 230 VAC ± 10%
• Nominal Supply Frequency: 50/60Hz
• Welding Current Range (MIG Mode): 30-230A
• Welding Current Range (Stick Mode): 10-200A
• Welding Current Range (TIG Mode): 5-230A (DC), 10-230A (AC)
• Nominal DC Open Circuit Voltage MIG Weld Mode: 78V
• Open Circuit Voltage (VRD On) Stick Weld Mode: <35V
• Open Circuit Voltage (VRD Off) Stick Weld Mode: 78V
• Effective Input Current (I1eff): 14.9 Amps (230VAC)
• Maximum Input Current (I1max): 31.7 Amps (230VAC)
• Minimum Single Phase Generator Recommendation: 9.5kVA @ 0.8PF
• MIG (GMAW) Welding Output, 40°C, 10 min: 230A @ 22%, 25.5V; 140A @ 60%, 21.0V; 110A @ 100%, 19.5V
• Stick (MMAW) Welding Output, 40°C, 10 min: 200A @ 25%, 28.0V; 130A @ 60%, 25.2V; 100A @ 100%, 24.0V
• TIG AC (GTAW) Welding Output, 40°C, 10 min: 230A @ 35%, 19.2V; 175A @ 60%, 17.0V; 135A @ 100%, 15.4V
• TIG DC (GTAW) Welding Output, 40°C, 10 min: 230A @ 35%, 19.2V; 175A @ 60%, 17.0V; 135A @ 100%, 15.4V
• Spool Gun Compatible: Yes, MIG MAN/SYN modes only
• Protection Class: IP23S
• Push-Pull Gun Compatible: Yes, all MIG modes

Warranty:

• 5 Years Warranty Covered by Cigweld (Machine)

Downloads

• Info Sheet - CIGWELD XF230-6 SiC
• Operating-Manual-CIGWELD-BlueVenom-XF195-XF200-XF230-SiC
• BlueVenom SiC Brochure
• BlueVenom SiC Selection Chart
