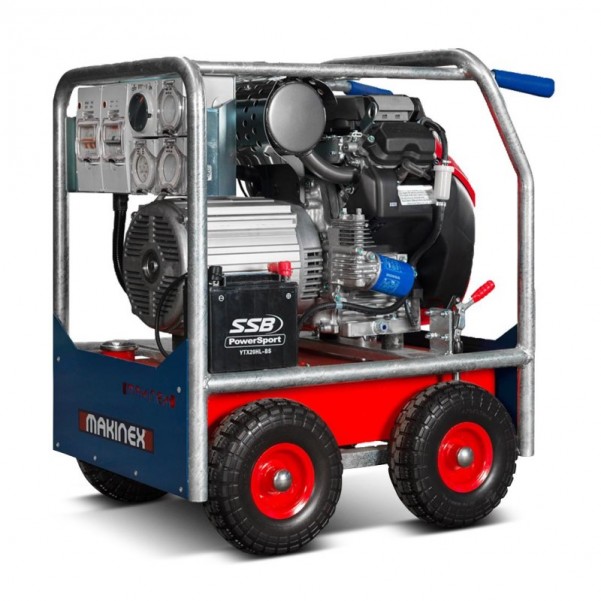

Makinex GEN-16P-AU - 12.8kW 16kVA 3-Phase Petrol Generator
Freight:
As this is a heavy and large item, please send us an Email or call us on (07) 3326 1555 for a more accurate shipping quote and/or any special shipping requirement.
Delivery:
This item is more than 155kg, please make sure you have a lifting device to unload it. Otherwise, please order a Hydraulic Tail Lift Service in the “Add Optional Accessories” section. Thanks.
Features and Benefits:
- Challenges on the Job
- Access to 3 phase and single phase power source
- Delays, waiting for 3-phase 415V power hook-up
- Getting the required outlets close to your work
- 3-phase 415V in a simple plug and play format
- Solution Benefits
- Highly portable, 3-phase 16kVA 240/415V generator
- 3-phase and single phase outlets on same machine
- Runs light and heavy duty equipment all together
- Reliable Honda GX690 4-stroke petrol engine
- Comes with 3 year warranty
- High frequency and induction load gear compatible
Specifications:
- Voltage: 240V Single Phase; 415V Three Phase
- Frequency: 50HZ
- Max output: 13,000W / 16kVA
- Rated output: 12,500W
- Rated power factor: 0.8
- Max Amps single phase: 15A @ 240V
- Max Amps three phase: 19A @ 415V 3Θ
- Sockets provided: 2 x 15A single phase + 1 x 20A/32A 3 phase sockets both with RCBO protection
- Dry weight: 155kg
- Noise level (7m): NO LOAD - 72dB
- Engine type: Twin cylinder Air Cooled Petrol
- Engine model: Honda GX690
- Starting system: Keystart
- Displacement: 688cc
- Fuel economy: 4.9 L/H @ 50% load
- Fuel tank: 34L
- Dimensions: 773mm(L) x 530mm(W) x 902mm(H)
Documents:
Video:
COMMON FORMULAS:
- 1KW = 1000W
- 1KVA = 800W
- 1HP = 750W
- 1KVA = 4Amps (Single phase)
- Watts = Volts x Amps
- Amps = Watts/Volts
General Rule #1
Compressors and other induction motors (e.g. Fridges, freezers and air conditioners) will require a minimum of 3 times the HP of the motor to the KVA to start. For example, an air conditioner with 1HP motor will require 3KVA every time that motor cycles in.
General Rule #2
Common Applications – Welders & Compressors:
- 120amp welder or 8CFM compressor requires a minimum of 5KVA
- 140amp welder or 10CFM compressor requires a minimum of 6KVA
- 160amp welder or 12CFM compressor requires a minimum of 7KVA
- 180amp welder or 14CFM compressor requires a minimum 8KVA
General Rule #3
To work out the generator size required, simply add the wattage of all appliances or construction tools likely to be used at the same time. Don’t forget to allow for any induction motors. Use the Common formulas above to calculate your minimum KVA required.
