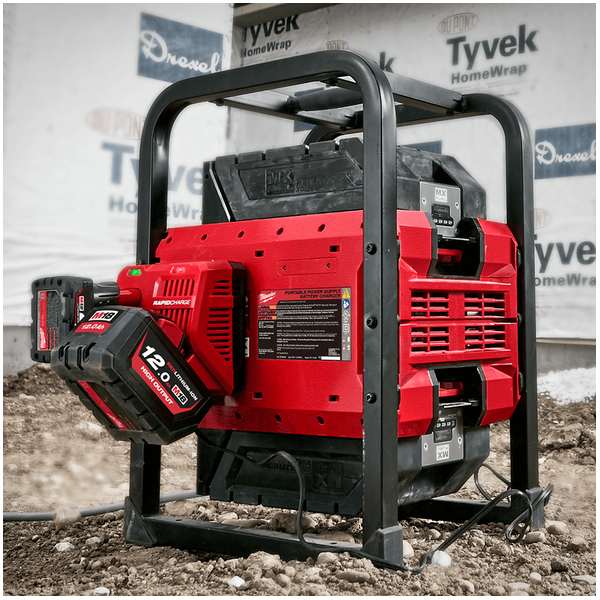

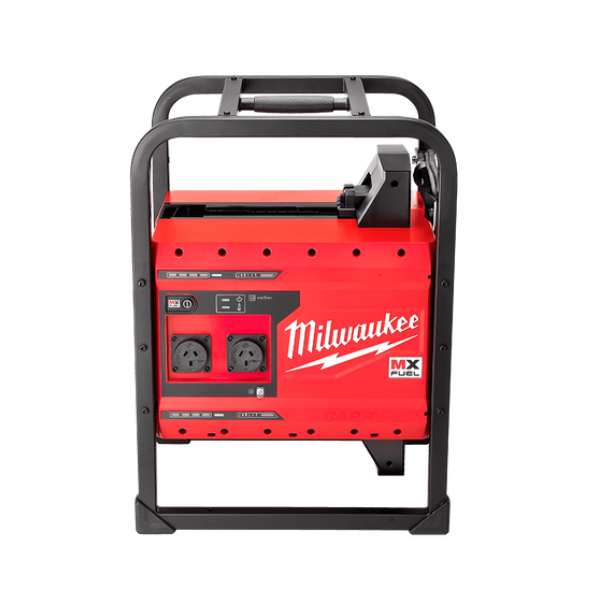

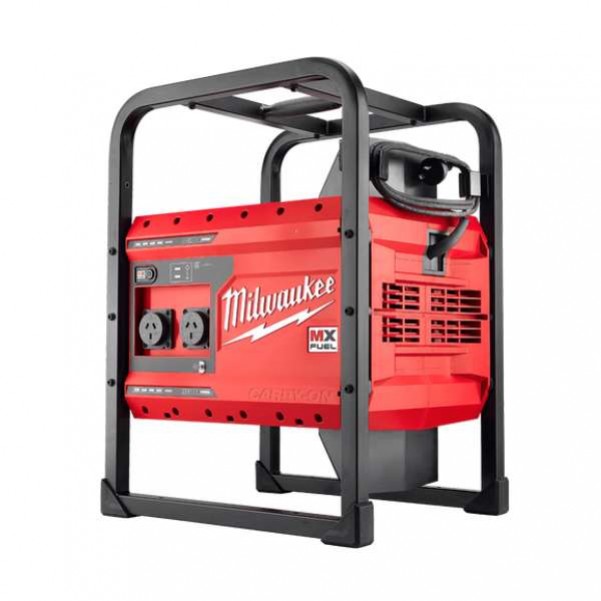

Milwaukee MXFPS-0 - MX FUEL™ Power Supply
MX FUEL™, Milwaukee®'s new equipment system, goes beyond the limitations of petrol and corded units, utilising the industry's most advanced batteries, motors, and electronics to deliver the best experience for users. This is equipment, redefined. The MX FUEL™ Power Supply allows users to power corded tools and appliances on-demand with efficient, quiet, and portable power anywhere. The Power Supply provides 3600 peak watts, 1800 continuous watts of pure sine wave for sensitive electronics. The optimised footprint, zero emissions when in use, and quiet operation of the Power Supply allow users to use it safely in confined spaces, both indoors and outdoors. The metal roll cage provides users with durability for outdoor jobsite use. The battery-powered Power Supply eliminates the cost of petrol, and doesn’t require engine repair or maintenance, reducing downtime and allowing users to get jobs done fast. The Power Supply can be powered by a single battery for lightweight portability or two batteries for double the run-time. The integrated MX FUEL Charger function of the MX FUEL™ Power Supply can sequentially charge a MXFCP203 battery in 45 minutes and a MXFXC406 battery in 90 minutes. It is compatible with all MILWAUKEE® MX FUEL™ REDLITHIUM™ batteries, giving users a hardworking and reliable power for equipment. REDLINK PLUS™ Intelligence ensures optimal performance and provides overload protection to protect the machine and battery during tough applications.
Includes:
- MX FUEL™ Power Supply [MXFPS-0]
(Not Included) Battery & Charger
Features:
- No ongoing engine maintenance, petrol frustrations and headaches
- No emissions when in use, safe use in both indoor and outdoor
- 3600 peak watts, 1800 continuous watts for high draw tools and equipment
- Push button start
- Minimal noise
- Pure sine wave for sensitive electronics
- Optimised footprint for use in any workspace
- Integrated MX FUEL Charger function
- M18/M12 Charger Mounting Location
- Lockable battery bays
- ONE-KEY™ compatible
Specifications:
- PLATFORM: MX FUEL™
- ONE-KEY ENABLED: Yes
- WEIGHT: 18.1kg
- WARRANTY: 2 Year Tool
COMMON FORMULAS:
- 1KW = 1000W
- 1KVA = 800W
- 1HP = 750W
- 1KVA = 4Amps (Single phase)
- Watts = Volts x Amps
- Amps = Watts/Volts
General Rule #1
Compressors and other induction motors (e.g. Fridges, freezers and air conditioners) will require a minimum of 3 times the HP of the motor to the KVA to start. For example, an air conditioner with 1HP motor will require 3KVA every time that motor cycles in.
General Rule #2
Common Applications – Welders & Compressors:
- 120amp welder or 8CFM compressor requires a minimum of 5KVA
- 140amp welder or 10CFM compressor requires a minimum of 6KVA
- 160amp welder or 12CFM compressor requires a minimum of 7KVA
- 180amp welder or 14CFM compressor requires a minimum 8KVA
General Rule #3
To work out the generator size required, simply add the wattage of all appliances or construction tools likely to be used at the same time. Don’t forget to allow for any induction motors. Use the Common formulas above to calculate your minimum KVA required.
