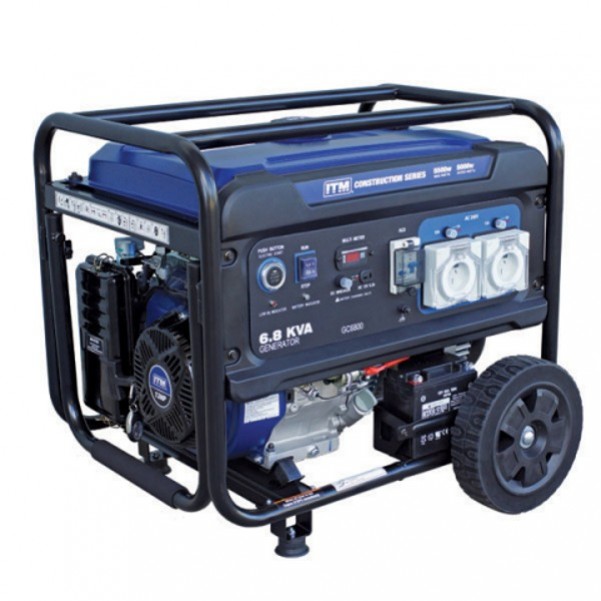

ITM TM520-5500 - 5.5kW 6.8kVA Construction Petrol Generator

ITM TM520-5500 - 5.5kW 6.8kVA Construction Petrol Generator with Peak Electric Start & Remote Control

Freight:
As this is a heavy and large item, please send us an Email or call us on (07) 3326 1555 for a more accurate shipping quote and/or any special shipping requirement.

Delivery:
This item is more than 83kg, please make sure you have a lifting device to unload it. Otherwise, please order a Hydraulic Tail Lift Service in the “Add Optional Accessories” section. Thanks.

Features:

All ITM generators are equipped with a reliable AVR (automatic voltage regulator) alternator utilising advanced electronic technology to provide a very pure energy supply with a THD (total harmonic distortion) of <5%. This clean and pure output means they are suitable to power even the most delicate electronic devices.

  • Powerful 4 Stroke OHV engines
  • Low Oil Sensor
  • Digital Multimeter Display
  • Large Capacity Fuel Tanks
  • 2 Year Trade Warranty

The Construction Series models have a simple push button electric start (battery included) with a convenient remote control which is perfect for the large property or worksite where the generator may not be close to the tool being powered.
Complete with a heavy duty handle and wheel kit, IP66 rated power outlets and RCD (Residual Current Device.), the construction series gens are perfect for the professional tradesman needing a tough yet reliable source of power.

Specifications:

  • Engine HP: 13HP
  • KVA: 6.8
  • Max Watts: 5,500
  • Rated Watts: 5,000
  • Noise @ 7m Full Load: 78dB
  • Outlets: 2 x IP66
  • Fuel Tank: 25L
  • Running Time - 50% Load: 13 hours
  • Starting System: Electric w/ Remote
  • Handle & Wheel Kit: Yes
  • Frame Dimensions: 69.5cm Long x 54.5cm Wide x 56.5cm High
  • Net Weight: 83Kg

Documents:



Write a review

Please login or register to review

COMMON FORMULAS:

  • 1KW =             1000W
  • 1KVA =             800W
  • 1HP =             750W
  • 1KVA =             4Amps (Single phase)
  • Watts =             Volts x Amps
  • Amps =             Watts/Volts

General Rule #1

Compressors and other induction motors (e.g. Fridges, freezers and air conditioners) will require a minimum of 3 times the HP of the motor to the KVA to start. For example, an air conditioner with 1HP motor will require 3KVA every time that motor cycles in.

General Rule #2

Common Applications – Welders & Compressors:

  • 120amp welder or 8CFM compressor requires a minimum of 5KVA
  • 140amp welder or 10CFM compressor requires a minimum of 6KVA
  • 160amp welder or 12CFM compressor requires a minimum of 7KVA
  • 180amp welder or 14CFM compressor requires a minimum 8KVA

General Rule #3

To work out the generator size required, simply add the wattage of all appliances or construction tools likely to be used at the same time. Don’t forget to allow for any induction motors. Use the Common formulas above to calculate your minimum KVA required.
