Weldclass WF-06167 - FORCE 250 Amp 255MST MIG/TIG/Arc Digital Welder

Weldclass WF-06167 - FORCE 250 Amp 255MST MIG/TIG/Arc Digital Welder



Freight:

This item is a heavy and large item, freight might vary from different locations, please contact us by Email or phone at (07) 3326 1555 for a more accurate shipping quote and/or any special shipping arrangements you may require.
This machine is a heavy machine more than 20 kg, please make sure you have the lifting device to load. Otherwise, please order a Hydraulic Tail Lift Service in the accessory section. Thanks.

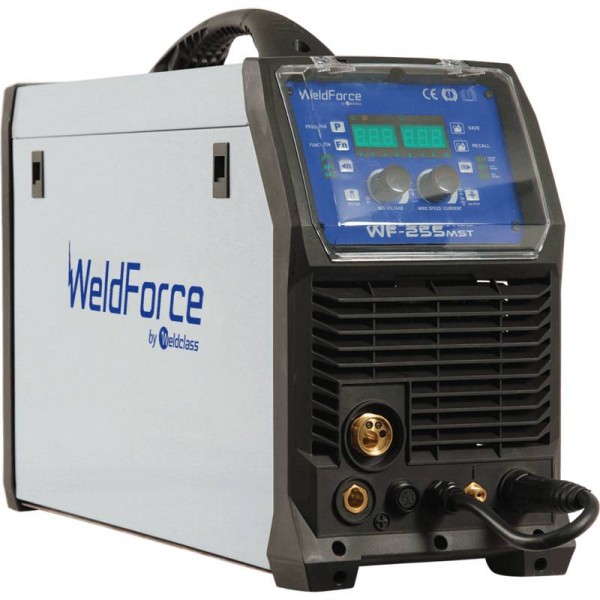

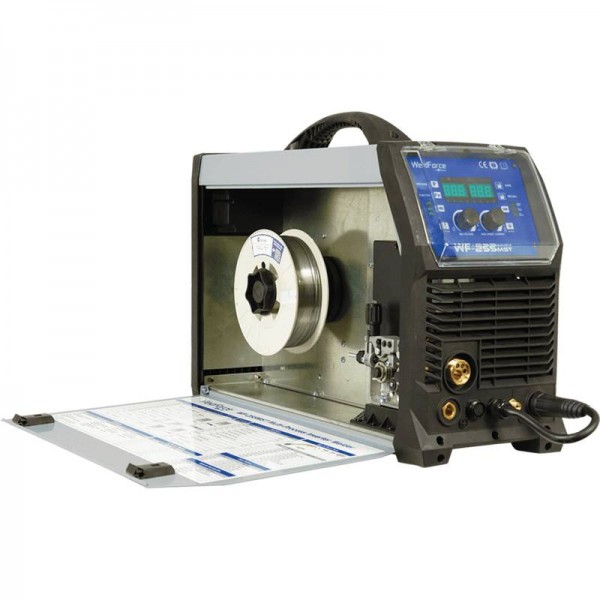

The WeldForce WF-255MST 250 Amp Mig Stick & Tig Digital Synergic Welder delivers an impressive 250A @ 35% output, plus a host of impressive features to make your job easier. Work in manual mode, or synergic (select the material and thickness, and the machine takes care of the settings). PFC technology means the WF-205MST is extremely power efficient, delivering higher duty cycle and allowing use on long extension leads (up to 100m) and a great machine for use with generators where required. Stick/MMA & lift-TIG capability, job memory, 4-roll geared drive system, fan-on-demand to reduce dust intake, spool gun ready, advanced Stick and TIG functions... and a stack of other features too numerous list here! Comes with 4m MIG torch, 2-stage gas-saving regulator, full set of drive rollers for gas, gasless & aluminium wire, 4m earth and stick leads, 15A plug fitted, and cable strap system. Maximum recommended MIG welding capacity of 12mm (mild steel).

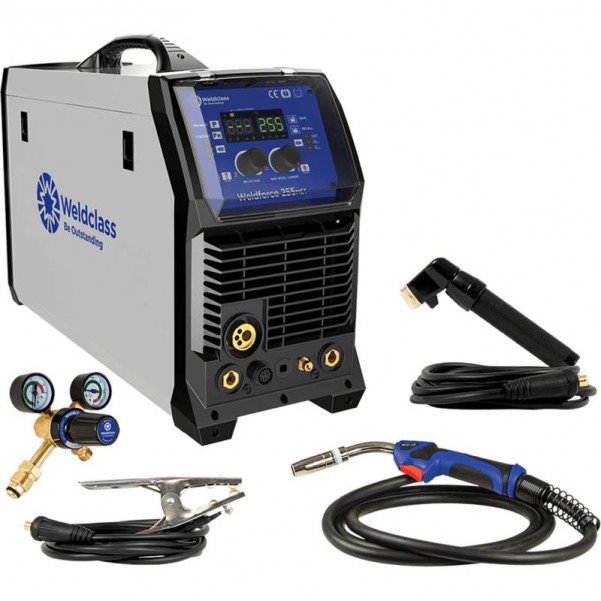

Includes:

  • Cable Retaining Strap
  • Driver Roller for 0.6/0.8mm steel/solid wire
  • Driver Roller for 0.8/0.9mm gasless wire
  • Driver Roller for 0.9/1.2mm steel/solid wire
  • Driver Roller for 1.0/1.2mm aluminium wire
  • Earth Lead H/Duty 4m
  • Gas Regulator
  • Long Power Input Lead 3m
  • MIG Torch 4m BZL 25
  • Stick Lead H/Duty 4m

Features:

  • 250A @ 35% max MIG output
  • Weld up to 12mm Mild Steel (max MIG capacity)
  • Standard: AS 60974.1
  • Fitted with 15A** 240V plug
  • Power Factor Correction (PFC) - reduced power draw, increased duty-cycle, ideal for long leads & generators
  • Manual or Synergic (enter material type & thickness and machine will set parameters automatically)
  • 20+ Pre-set Programs - for different materials
  • Job Save - store custom settings for up to 20 jobs
  • Geared 4-Roll Wire Drive System - for super reliable wirefeeding
  • Takes 5kg (D200mm) or 15kg (D300mm)spools
  • Spool Gun Ready
  • Generator Friendly - min 13kva, ideal 15+kva
  • Fan-on-Demand - reduces dust intake
  • Stressed-Tested - to 440V & over-specified componentry for reliability
  • Shipping Weight: 26kg
  • **15 Amp plug fitted for commissioning purposes only. To obtain full output, 25A or 32A plug & 4.0mm input cable should be installed by the user.

Specifications:

  • MIG*
    • Welding Current / Voltage Output    10A/16V - 250A/26.5V
    • Duty Cycle (40 C)    250A @ 35%
    • 195A @ 60%
    • 150A @ 100%
    • Wire Sizes / Capacity    0.6, 0.8, 0.9, 1.0, 1.2mm
  • Stick (MMA)*
    • Welding Current Output    10 – 250A
    • Duty Cycle    250A @ 30%
    • MMA Electrode Size / Capacity    1.6 – 4.0mm
  • TIG*
    • Welding Current Output    10 – 250A
    • Duty Cycle    250A @ 35%
    • TIG Tungsten Electrode Size / Capacity    1.6 – 2.4mm
  • *Full output of machine when upgraded plug is fitted – refer to instruction manual for full details.
  • Dimensions: L680 x W250 x H480mm
  • Weight: 26kg
  • Warranty: 7 Year Warranty (if registered within 30 days of purchase) Weldclass.com.au/WeldforceWarranty
  •
