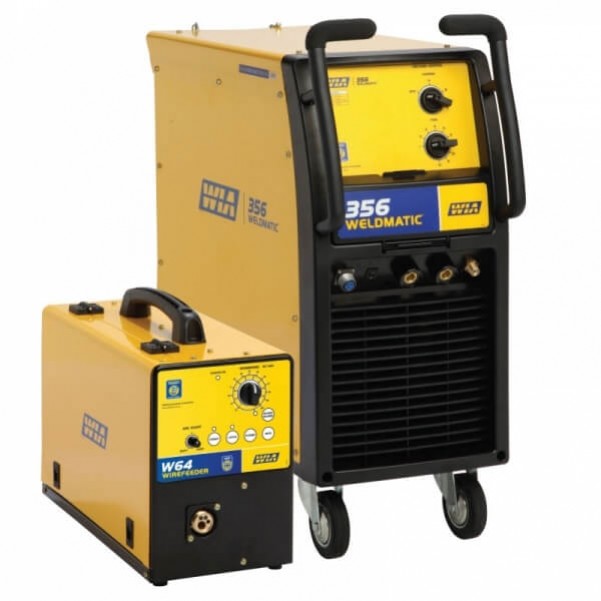

WIA CP133-1 - Weldmatic 356 Mig Package

WIA CP133-1 - Weldmatic 356 Mig Package

Freight:

This item is a heavy and large item, freight might vary from different location, please contact us at Email or phone us on (07) 3326 1555 for a more accurate shipping quote and/or any special shipping arrangements you may require.

Delivery:

This is a heavy item more than 100 kg, please make sure you have the lifting device to load. Otherwise, please order a Hydraulic Tail Lift Service in the accessory section. Thanks

Features:

  • Pure Power
    • This industrial strength MIG delivers 356 Amps of pure power, plus all the features needed to maximise your productivity in one complete package.
  • Productivity on Demand
    • Experience a boost in productivity thanks to the impressive 40% duty cycle at the rated output of 32 Volts.
  • Industrial Strength
    • The Weldmatic 356 is the ideal choice for medium industrial fabrication workshops, sheet metal, boat building, service, repair, maintenance and training centres/schools.
  • Reliability
    • Fitted with an industrial standard 3.6m gun and cable for reliable welding performance and long operating life.
  • Fine Arc Control
    • 30 Voltage steps provide fine arc control over the whole operating range, from short arc to full spray transfer.
  • Flexibility
    • Reach around those awkward jobs with the fully enclosed separate Wire feeder.
  • Built-in Operator Safety
    • The power source features a built-in thermal protection device that will cut in if the machine is operated beyond its safe thermal operating zone.
  • Gas or Gasless
    • Suits gas shielded and flux cored wires.
  • Dual Front Handles
    • Exclusive split handles with rubber grips designed to move the machine easily and allow composite work lead and MIG gun to be stored independently.
  • Fan-on-Demand
    • The Fan-on-Demand™ uses less power and generates less noise by only operating the fan when needed. This reduces dust build up inside the machine, meaning less maintenance time and increasing the life of components.
  • Spool Capacity
    • 5kg & 15kg.
  • 3 Year Gold Shield Warranty
    • Every Weldmatic machine is backed by WIA’s industry-leading ‘Gold Shield 3 Year Warranty’, covering parts and labour, and supported by an Australia wide service network. You can be guaranteed you’re buying reliability and performance. For details, refer to the Weldmatic warranty statement.

Specifications:

  • Primary Voltage: 380/415 Vac, 50 Hz 3 Phase
  • Rated Primary Current: 15 Amps
  • Max Primary Current: 23 Amps
  • Recommended Generator kVa: 16.5 kVa
  • Rated Output @ 40C (10min): 355 Amps, 32 Volts, 40% Duty Cycle, 225 Amps, 25.3 Volts, 100% Duty Cycle
  • Welding Current Range: 30-355 Amps
  • Wire Size Range (mm): 0.6-1.2 solid, 0.8-1.6 cored
  • Shipping Weight: 168kg

Includes:

  • W64 4 Roll Drive Wire feeder
  • 3.6m Euro Gun Cable
  • Bernard™ Centerfire™ Tip 0.9mm
  • 10m Work Lead
  • 10m Interconnecting Leads
  • Gas Regulator/Flowmeter
  • Drive Rollers: 0.9/1.2mm "V" groove; 0.9/1.2mm knurled (gasless, flux cored)
