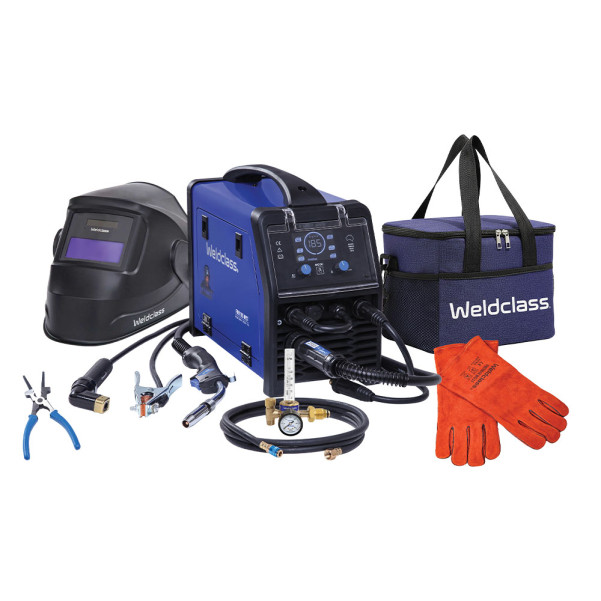

Weldclass WFY185MK1 - Welder MIG/Stick/TIG FURY 185 MPST Pulse Value Kit

Includes:

• FURY 185 MPST Machine
• PROMAX 130 Auto Darkening Helmet
• MIG Gun BZL24 x 3m
• Work return Lead & Clamp
• Stick Welding Lead with Twist-Lock holder
• Gas regulator and Hose
• Welding Gloves
• MIG Pliers
• Wire Feed Rollers: Solid 0.8mm-0.9mm, Flux-Cored: 0.8mm-0.9mm, Aluminium: 0.9-1.0mm
• Cooler Bag - For Hot Days and Cold Drinks

KEY FEATURES:

• Industry-first 7-year warranty **
• Very easy to navigate user interface: Intuitive control panel allows most settings and controls to be used without getting your head stuck in the instruction manual
• Large, colour LED display
• Choice of Manual MIG (voltage and wire speed adjusted manually), or Synergic MIG (set wire type/size, then just adjust one output dial based on material thickness)
• Choice of Pulse mode in all processes (MIG, Stick, TIG)
• Stick/MMA pulse adjustable frequency 1-10Hz
• TIG pulse adjustable frequency 1-10Hz
• Spool Gun Ready, Ideal for welding aluminium
• Lightweight and compact
• Over-specified heavy-duty 240A BZL24 MIG Torch
• Large “35-50” output cable connections
• Quick-connect gas inlet fitting, for fast & easy gas hose fitting/removal

**Standard warranty 3 years, with extended 7 year warranty available if registered online after purchase, click here for details.

APPLICATIONS & CAPABILITY

• Ideal for trade, farm, maintenance, and serious hobbyist use
• MIG welding 30-185A with solid Steel 0.6/0.8/0.9mm wire, material thickness approx. 0.8-8mm
• MIG welding 30-185A with solid Stainless-Steel 0.8/0.9mm wire (0.8mm wire is best suited), material thickness approx. 1.2-10mm
• MIG welding 30-185A with solid Aluminium 0.9/1.0mm wire (1.0mm wire is best suited), material thickness approx. 1.2-10mm
• Gasless ‘MIG’ welding of steel 30-185A with 0.8/0.9mm flux-cored wires, material thickness approx. 1.2-8mm
• Stick (MMA) welding 10-160A with most types of common electrodes (1.6/2.0/2.5/3.2mm), including steel & stainless, material thickness up to 10mm
• TIG welding 10-160A (DC lift-arc) of steel, stainless, copper & chrome molly, ferrous metals, up to 8mm max thickness, using 1.6/2.4mm tungsten electrodes
• NOT suitable for TIG welding of aluminium (this requires AC/DC TIG capability)

TECHNICAL SPECIFICATIONS:

• Output Amperage: 30 – 185A
• Power Supply: Single phase 230V-240V, 3 pin
• Wall Socket & Plug: 10A Domestic Power
• Generator Size: Minimum 8kVA, recommended 9+kVA for maximum output (See here see here for more info on generator use)
• Output Terminals: Large 35-50 Dinse Style
• MIG Duty Cycle: 185A @ 10% | 76A @ 60% | 59A @ 100%
• MMA Duty Cycle: 160A @ 11% | 69A @ 60% | 53A @ 100%
• TIG Duty Cycle: 160A @ 13% | 74A @ 60% | 58A @ 100%
• Wire Spool Sizes: D100mm / 1kg and D200mm / 5kg
• Wire Drive System: 2 Roll, Geared-Drive Top & Bottom (well suited for feeding aluminium wires)
• MIG Feed Roll Size: O.D. 30mm x I.D. 22mm x Width 10mm
• MIG Gun Type: BZL 24 x 3m
• Dimensions of machine only including handle: L465 x W225 x H365mm
• Weight of machine only: 10.5kg
• IP Rating: IP21S
• Manufactured to AS 60974.1 standard

PROCESSES:

• MIG: Single-Pulse and Non-pulse
• Gasless MIG
• MIG Spool Gun
• Stick / MMA: Pulse and Non-pulse
• TIG (DC lift-arc for steel/stainless): Pulse and Non-pulse

WHY PULSE?

• Pulse MIG Welding (Single Pulse) allows you to weld like a pro, with very low spatter, super smooth welds and low distortion. Suitable for welding Aluminium, Stainless and Carbon Steels
• Pulse STICK welding allows smoother, cleaner welds in hard to weld positions like vertical-up and overhead, plus helps bridge large gaps without burn through.
• Pulse DC-TIG Welding (Lift-TIG) is well suited to creating scalloped looking TIG Welds on Stainless and Carbon Steels (stack of Dimes look) so your TIG welds exhibit the best in appearance.

AT A GLANCE:

• 185A @ 10% max output
• MIG weld up to 8mm mild steel, Stick weld up to 10mm
• Fitted with 230V 10A plug
• Takes 1kg and 5kg spools
• Supplied as a Value Kit with bonus helmet, gloves, pliers, cooler bag
• Pulse mode in all functions (MIG, Stick, TIG)
• Simple and very user-friendly controls

OPTIONAL ACCESSORIES:

• TIG Torch #17FV 4m (WC-00992)
• Spool Gun BZL24 5m (W06316)
• T100 Welding Trolley (WC-06235)

COMMON SPARE PARTS:

• MIG Torch and Spares (BZL 24)
• Drive Rollers
• Gas Hose (WC-03338)
• Earth Lead (WC-06232)
• Electrode Holder Lead (WC-06233)

Resources:

• Download Instruction Manual
• Download User Guide
• Download Fact Sheet
