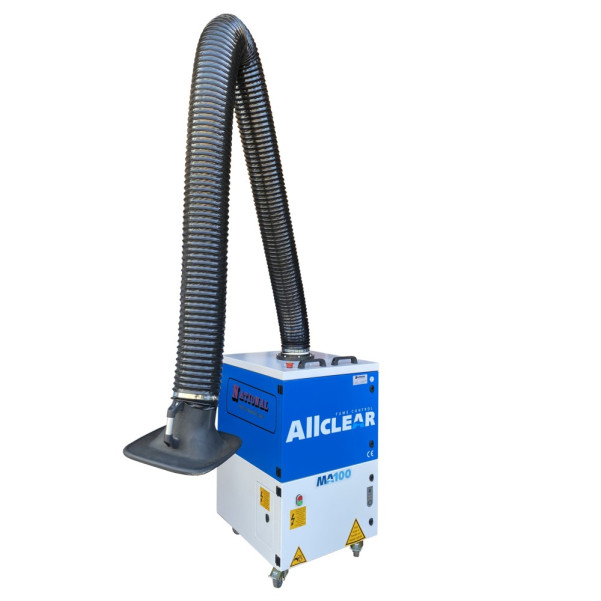

ALLCLEAR 91100MA1 - MA100 1ph 240V Mobile Welding Fume Extractor with Single 3m Arm

The ALLCLEAR^® MA100 is a popular 230V mobile fume extraction and filtration unit for welding and grinding, equipped with a 3-metre arm. It is one of the most compact and economical extraction units in the ALLCLEAR range. With cleanable cartridge filter for extended filter life, the MA100 offers significantly lower operating costs vs units with traditional 'box filters'. A special deflector plate above the filter further extends filter life and virtually eliminates the risk of fire. Convenient access door allows for in-situ cleaning, and avoids operator exposure to collected fume dust. Mounted on casters for mobility, and operates off single-phase ~230V 10A power supply.

AT A GLANCE:

• 7 Year Warranty Offer*
• For welding & grinding fumes
• Operates on ~230V 10A single phase power
• Single 3m arm
• Cleanable filter for longer filter life & reduced operating costs
• ‘In Situ’ filter cleaning - access via filter cleaning door, clean with compressed air nozzle
• Special spark deflector virtually eliminates fire risk
• One of the most popular ALLCLEAR mobile units
• Compact and mobile

APPLICATIONS:

• MIG welding
• Flux-Core (FCAW) welding
• TIG welding
• Plasma Cutting
• Grinding
• Arc Gouging
• In high-fume applications (eg some flux-core wires), models with auto cleaning function such as MA300 AUTO or MA350 AUTO are recommended
• NOT suitable for extraction of fumes that contain; aluminium dust, oil mist, gases, or water vapour***

Features:

• Cleanable cartridge filter for extended filter life & significantly lower operating costs vs traditional box filters
• Special spark deflection / impact plate shields the filter from sparks & coarse particles (redirecting them to the dust collection tray), significantly reducing the risk of burnout / fire**, and further increasing filter life
• Cleanable filter provides consistent air flow rate (minimal drop in suction power) over the life of the filter
• Special cleaning door allows for ‘in situ’ filter cleaning (no need to remove filter)
• Easy and safe access to ‘clean’ side of filter = operator is not exposed to captured fume dust during cleaning
• Large 14m² filter surface area & nanofiber structure provide high filtration efficiency and long life
• High extraction performance (max air flow: 2,500m³ / hour)
• Compact and mobile
• Ergonomic design with easy access to all functions & replacement filters
• Collection tray allows safe removal of dust ejected from filter cleaning
• Exhaust airflow is directed upwards & away from the floor/ground, for minimal disturbance of dust in surrounding environment
• Arcrobat arm joints use special materials & design to provide long-term use and prevent wear/fatigue
• Durable hose material resist wear and high temperatures
• Lightweight and durable suction hood catches particles with a large inlet

Specifications:

• Power supply: Single phase ~230V 10A
• Dimensions (mm): L780 x W600 x H1000
• Weight: ~110kg
• Motor size: 1.1kw
• Max air flow: 2,500m³ / hour
• Air flow at suction point: 1,600m³ / hour
• Filter surface area: 14m²
• Filter cleaning: Manual (access via filter cleaning door, clean with compressed air nozzle)
• Noise level: 74 dBA
• Sound insulation: Acoustic sponge
• Body material: Galvanised steel
• Fan: Aluminium

OPTIONAL ACCESSORES & COMMON SPARE PARTS:

• Main cartridge filter standard F9 (91990116)
• Optional HEPA (high efficiency) H13 main cartridge filter (91990118)
• Optional Carbon filter for odour reduction (91990120)

Resources:

• Download Instruction Manual
• Download Fact Sheet

*Standard warranty 1 year, with extended 7 year warranty available if registered online after purchase, click here for details.
**Regular maintenance must be carried out, and all warnings and instructions provided in user manual and on the unit must be followed, for ongoing safe use and prevention of fire hazards. Poor maintenance and disregarding of instructions and warnings may result in fire and other hazards that can cause damage, injury, and death.
***Aluminium dust, including grinding dust, can be explosive when airborne, and for this reason, fume extractors and downdraft tables should not be used for extraction of aluminium grinding dust (this does not apply to aluminium welding fumes, which can be safely extracted). Oil mist and gases can also cause explosion. Water vapour will damage the filter.
****Power plug not included.  Requires 415V plug, with amperage 10A or higher. Plug should be fitted by a qualified electrician. Unit does not have automatic phase rotation. Phase rotation of plug wiring, to ensure correct rotation/direction of extractor fan, depends on phase wiring at the premises/facility of use.
