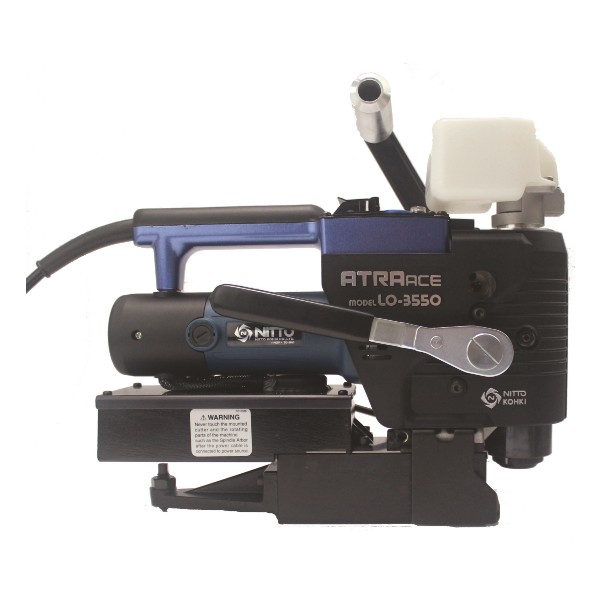

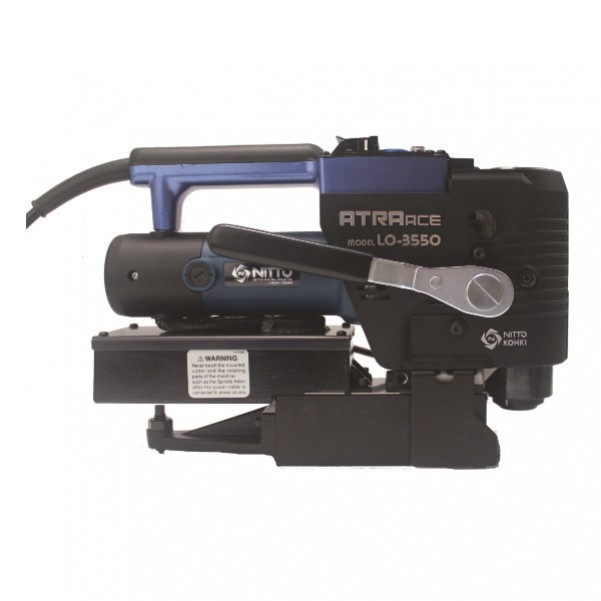

Nitto LO-3550 - 240V 800W 35mm Depth Atra Ace Portable Low Profile Magnetic Base Drilling Machine 018000401

Compact, lightweight, low profile design of LO-3550 gives you greater hole making mobility.

Features:

One-touch cutter replacement
Compact at less than 230mm tall, lightweight at only 8.7kg
Designed to improve drilling in confined and elevated spaces
Drilling on 100mm or more width web and flange
Drill position can be adjusted up to 10mm travel on each axis
Light operation with less cutting resistance using Nitto Kohki made Jetbroach cutters
Easy to use switch panel with LED Load detection
Reversible and adjustable feed handles can be locked at varying angles to enhance productivity

Applications:

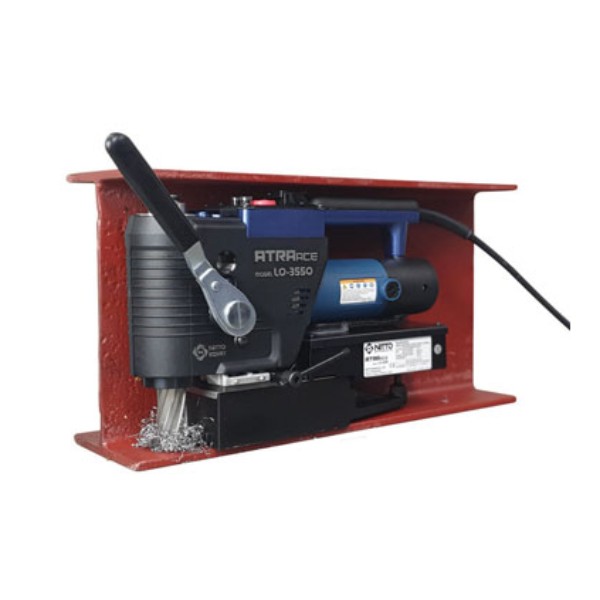

Perfect for H bean work
Great for elevated work due to lightweight design
Compact size means it fits into narrow spaces where other mag base drills cant reach

Specifications:

Power Source (Single Phase): 220 - 240 V AC 50 / 60 Hz
Rated Power Consumption: 800 W
Rated Current: 3.3 A
No Load Speed: 950 min-1
Magnet Power Consumption: 35 W
Magnetic Holding Power: 5,5000N (561kgf)
Magnetic Dimension: 65mm (W) x 145mm(L)
Dimension (Machine only): 540mm x 230mm x 316mm
Weight: 8.7kg (without electric cord and sub handle)
