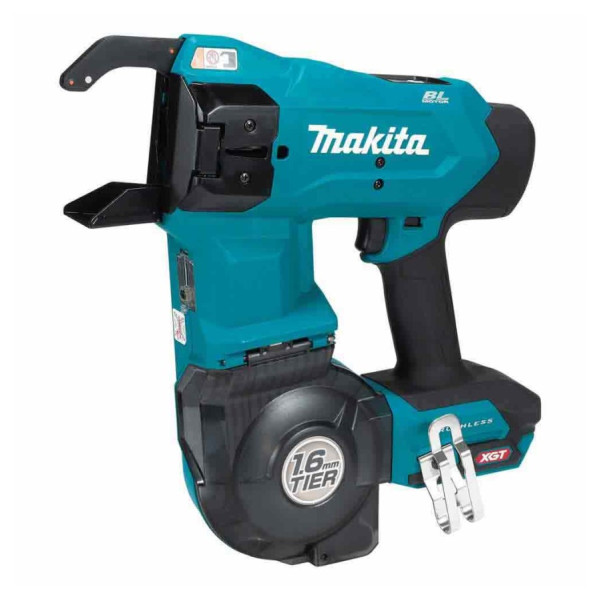

Makita TR001GZ01 - 40V Max 16Ga Brushless Cordless Rebar Tying Tool Skin
The TR001G is a cordless rebar tying tool powered by a 40Vmax XGT Li-Ion battery. Powered by an XGT battery and equipped with dual BL motors, the tool delivers high tying strength and speed using 1.6 mm wire.
Featuring a wire pullback mechanism for tight, secure ties, compatibility with a range of rebar combinations, and adjustable tying strength (clockwise), it ensures consistent results with less effort. This tool also features a one-step reel loading achieved through a wire feeding mechanism automatically created when reel cover is open, for faster, more efficient work.
Built with XPT water resistance, ergonomic grip, and optional extension handle for standing operation, the TR001G is engineered for comfort, durability, and productivity in demanding conditions.
Features
- High Tying Strength – Delivers up to 2.8 times greater tying strength compared to the equivalent 18V model.
- Wire Pullback Mechanism – Pulls the wire tightly against the rebar, creating secure and consistent ties with reduced slack.

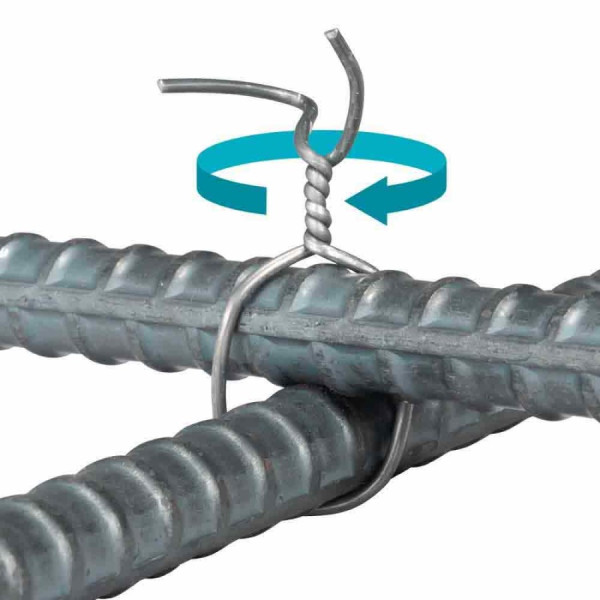

- Clockwise Wire Twisting – Replicates traditional manual tying methods and helps minimise the risk of unintentional loosening when re-tightening by hand.
- Easy Wire Loading – Opening the reel cover automatically creates a gap between the feed gears, allowing the tying wire reel to be replaced quickly in a single action.
- Adjustable Tying Strength – Tying strength can be adjusted using the dedicated control button, with the selected setting clearly displayed on the control panel.
- Rapid Tying Speed – Completes ties in less than one second, helping to significantly improve productivity on site.
- Ergonomic Design – Engineered for comfortable operation and reduced repetitive wrist strain associated with manual rebar tying.
- Improved Hook Design – Specially shaped hook accommodates rebars up to D19 diameter, making it easier to hang and carry the tool when not in use.
Specifications
- Tie Wire: Annealed wire 16Ga (Ø1.6mm)
- Applicable Bars: D10 × D10 to (D16 × 2) × (D16 × 2)
- Tying Speed: 0.7 seconds
- Tying Strength Adjustment: Yes (6 stages)
- Overall Length: 340mm
- Skin Weight: 2.6kg
- Weight (with Battery): 3.9kg (BL4050F)
- Voltage: 40V Max
Standard Accessories
- 194381-3 – Oil Vessel Set
- 266622-8 – Truss Head Screw M4 x 12
- 347D31-5 – Hook
- 783208-8 – Hex Wrench 2.5mm
- 821936-8 – Plastic Carry Case
