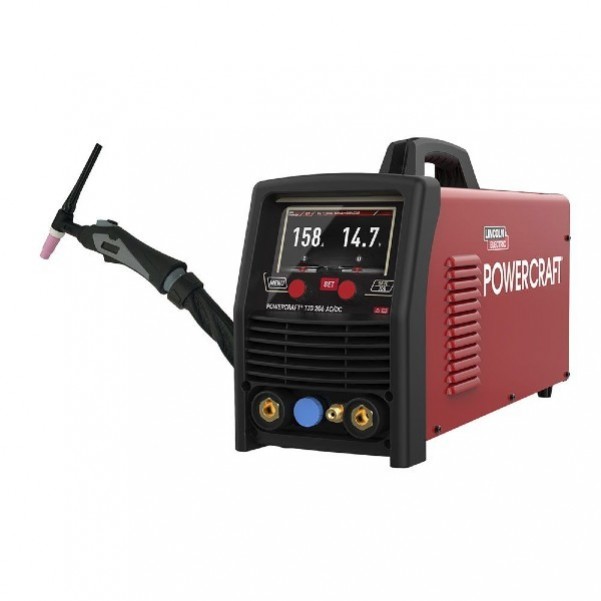

Lincoln K69079-1 - 240V 200Amp Powercraft 206C 3-Phase AC/DC TIG Welding Package

Lincoln K69079-1 - 240V 200Amp Powercraft 206C 3-Phase AC/DC TIG Welding Package

The Powercraft® 206 AC/DC TIG is a 200 amp 240V /10 amp inverter-based welder that offers a greater duty cycle with energy saving efficiences often seen in some larger industrial machines. An easy to use LCD screen with 10 memory functions allows you to set various parameters such as start current, crater current, welding current, base current, duty ratio, upslope time, downslope time, pre-gas, post-gas and pulse frequency. Hot start and arc force parameters can also be set in the user interface.

With superb TIG characteristics in lift-arc DC TIG or HF AC-DC TIG the Powercraft® 206 AC/DC TIG delivers perfect arc ignition every time and a smooth stable arc producing high quality TIG welds. TIG functionality includes adjustable down slope and post gas settings to further enhance your welding performance – gas solenoid-valve equipped for better control. Built-in automatic protection functions and VRD provide added safety to the welding operator in stick mode. This industrial quality machine has built-in automatic functions with over-voltage, over-current and over-heating protection technology. Alarm indicators will show on the front screen and output current will be turned off automatically.

Highly versatile and portable the Powercraft® 206 TIG AC/DC can be used in the workshop or on-site by contractors, general fabrication, sheet metal, maintenance / repair, rural and general DIY. Comes Ready-to-Weld™ including: Power source, TIG torch (4m), electrode holder (3m), work clamp, gas hose and flow meter.

Features:

  • LCD screen for accurate setting and feedback of welding output.
  • New PWM technology and IGBT inverter technology.
  • Active PFC technology for increased duty cycle and energy efficiency.
  • Can use with long extension lead.
  • IP21S rating for environmental/safety protection.
  • 10 Memory function.

Specifications:

  • Input voltage (V) / phase: 240±10% / 1
  • Frequency (HZ): 50/60
  • Maximum input current (A):
    • TIG AC: 19.5
    • TIG DC: 20.5
    • Stick VRD: 29.6
  • Input effective current Ieff (A):
    • TIG AC: 8.7
    • TIG DC: 9.2
    • Stick VRD: 9.4
  • Input power (KW):
    • TIG AC: 4.9
    • TIG DC: 4.9
    • Stick VRD: 7.2
  • Welding current (A):
    • TIG AC: 10-200
    • TIG DC: 10-200
    • Stick VRD: 30-200
  • Max no-load voltage (V):
    • TIG AC: 73.0
    • TIG DC: 73.0
    • Stick VRD: 10.5
  • Duty cycle:
    • TIG AC: 20% 200A | 60% 115A | 100% 90A
    • TIG DC: 20% 200A | 60% 115A | 100% 90A
    • Stick VRD: 10% 200A | 60% 85A | 100% 65A
  • Power factor (%): 0.99
  • Protection class: IP21S
  • Circuit breaker: 15A “D” Class
  • Generator compatible: YES
  • Generator requirements: Output: ≥ 8kVa / Output range: 190-265 volts / Peak max: 370 volts / Frequency: 50-60Hz
  • Dimensions WxLxD (mm): 419 x 246 x 506mm
  • Protection Class: IP23

Includes:

  • 1 x  TIG Torch
  • 1 x Work Lead Return
  • 1 x Flowmeter
