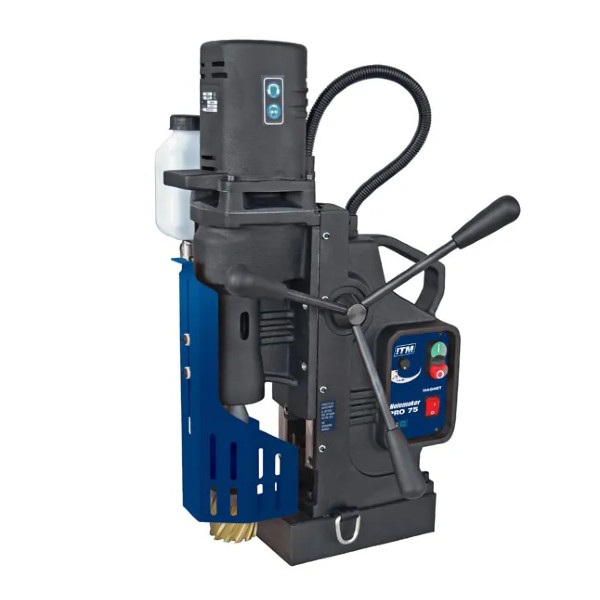

Holemaker HMPRO75SR - 240V 75mm PRO 75SR Magnetic Base Drilling Machine

Click Image for Gallery

Holemaker HMPRO75SR - 240V 75mm PRO 75SR Magnetic Base Drilling Machine

Features:

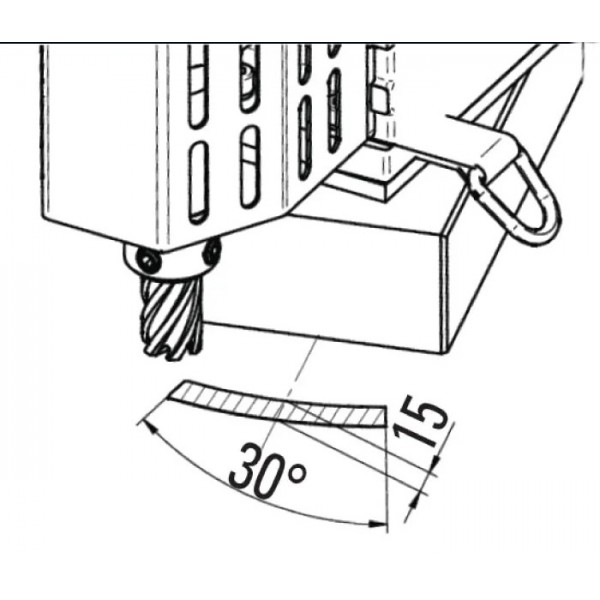

The Holemaker PRO 75SR is as per the standard Holemaker Pro 75, but with the two additions of a swivel base system and reversible gearbox.
The Holemaker PRO 75SR is a versatile, multi-purpose machine, equipped with a No. 3 Morse Taper spindle.
Protection against tap breakage ensured by an ultra-sensitive and smooth multi-position operating ball-clutch.
Forward and reverse ball drive design transmits rotational power to the tap and disengages smoothly and silently.
Axial float ensures smooth tapping and better thread profile.
Cushioned drive incorporating compression and extension, eliminates the possibility of cross threading during the tapping process and ensures clean and accurate threads.
A planetary gear reversing mechanism transmits smooth positive reverse to the tap retraction and it retracts 75% faster than it enters.
Accurate depth control by means of its precise neutral mechanism.
Through Spindle Coolant System
Smart Magnet Technology To Ensure Sufficient Magnetic Adhesion
Supplied In Metal Carry Case With Cutter Guard & Safety Strap

Specifications:

Capacity ( Diameter ): 75mm
Capacity ( Depth ): 110mm
Capacity ( Twist Drill ): #3 Morse Taper 32mm
Motor Power: 1650 watt
Input Power: 1800 watt Single Phase 240V
Gearbox: 2 Speed Gearbox With Electronic Variable Speed And Motor Soft Start Feature 80-160; 210-420rpm
Weight: 27.0kg
Magnetic Dead Lift: 19500Nm On 25mm Steel Plate
Stroke: 214mm
Height ( min / max ): 525mm / 739mm
