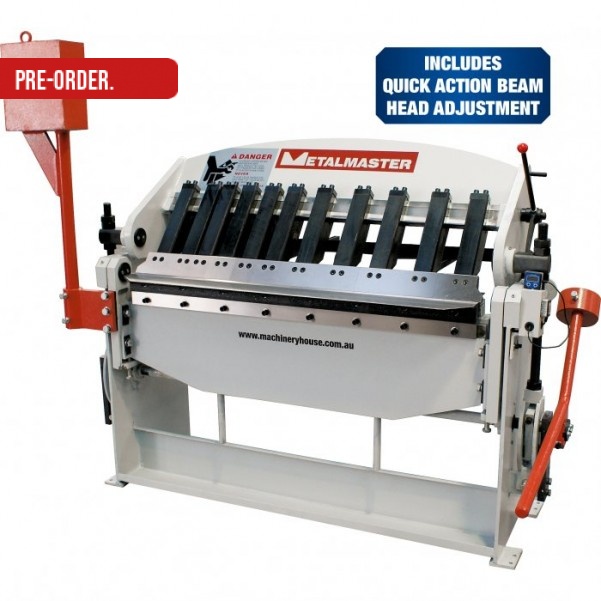

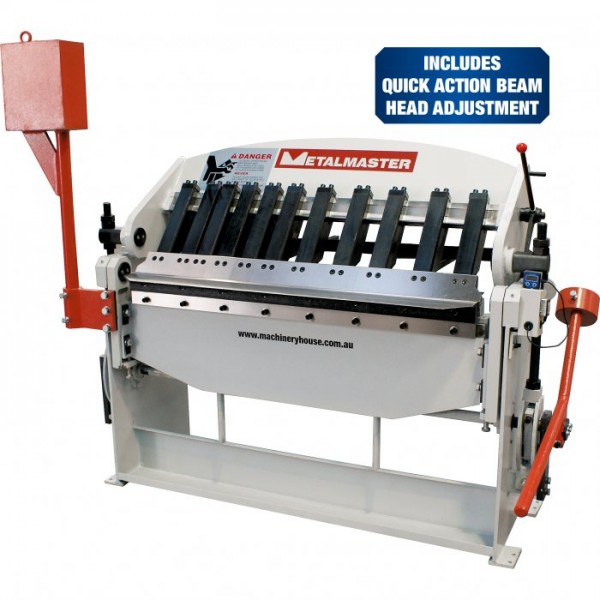

Hafco PB-422A - 1250 x 2.0mm METALMASTER Mild Steel Bending Manual Panbrake S262

Features:

1250mm x 2mm capacity
Extended fingers allows bending of pans or boxes to a depth of 230mm
Quick head adjustment mechanism to suit your material thickness
Ground segmented fingers can be repositioned to suit many applications
Heavy duty steel fabricated frame provides accurate bends
Safety top beam support stop lever located on right side of machine
Grease nipples located on all rotating parts
Quick action beam adjustment for varying material thickness
Removable individual bending fingers for pans or boxes
Mild steel capacity is rated on hot rolled material with 250MPA

Includes:

Includes digital angle readout with CR2032 battery
Quick Action Beam Head Adjustment for Material Thickness
Rear manual backgauge

Specifications:

Bending Capacity - Mild Steel: 2mm
Material Length Capacity: 1250mm
Floor Space (L x W x H): 1820 x 620 x 1300mm
Nett Weight: 980kg
