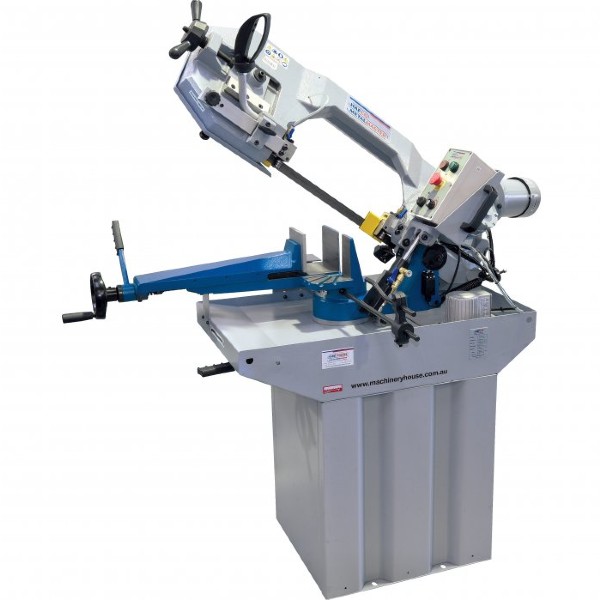

Hafco EB-260V - 240V 1.5kW Swivel Head Metal Cutting Band Saw B062V
Freight:
This is a heavy and large item. Freight cost might be vary from different locations. Please contact us by Email or phone us on (07) 3326 1555 for a accurate shipping quote and/or any special shipping arrangements you may require.
Delivery:
This heavy item is more than 200 kg, please make sure you have the lifting device to unload. Otherwise, please order a Hydraulic Tail Lift Service in the accessory section. Thanks.
Electronic Variable Blade Speed 20-90mpm, Mitre Cuts Up To 60º, Quick Action Material Clamp & Includes Hydraulic Downfeed Control225 x 180mm (W x H) Rectangle Capacity
Features:
-
225 x 180mm rectangular capacity
-
Electronic variable blade speed, 240V motor
-
Larger cutting capacity than conventional cold saws
-
Heavy-duty gear drive system
-
Quick-action lock/release vice
-
Swivel head mitre cut to 60º right
-
Quick action lock/release lever for swivel head
-
Coolant system for cutting efficiency and blade life
-
User friendly blade tension system
-
Control panel mounted for easy access
-
Adjustable length stop for repetition cutting
-
Ball bearing blade guides ensures minimal blade clearance wear & increases blade life due to less friction
-
Blade cleaning brush incorporated into blade guide system
-
Adjustable hydraulic cylinder for auto feed
-
Vibration free, low noise operation ensures clean & high precision cuts
-
Machine stand with integrated cooling fitted as standard
Specifications:
-
Operation Type: Swivel Head
-
Round at 90º: 225mm
-
Round at 45º: 150mm
-
Round at 60º: 100mm
-
Square at 90º: 180mm
-
Square at 45º: 140mm
-
Square at 60º: 100mm
-
Rectangle (W x H) at 90º: 225 x 180 mm
-
Rectangle (W x H) at 45º: 140 x 140 mm
-
Rectangle (W x H) at 60º: 100 x 100 mm
-
Coolant System: Yes
-
Table Working Height: 950mm
-
Cutting Head Beam Type: Manual
-
Cutting Head Beam Return: Manual Return
-
Cutting Head Down Feed Control: Adjustable Hydraulic
-
Vice Clamping Fixture: Manual - Quick Action
-
Blade Steps / Speeds: Variable 20-90 m/min
-
Blade Size (L x W x T): 2480 x 27 x 0.9 mm
-
Motor Power: 1.5 kW / 2 hp
-
Voltage / Amperage: 240 V / 10 amp
- Nett Weight: 200 kg
