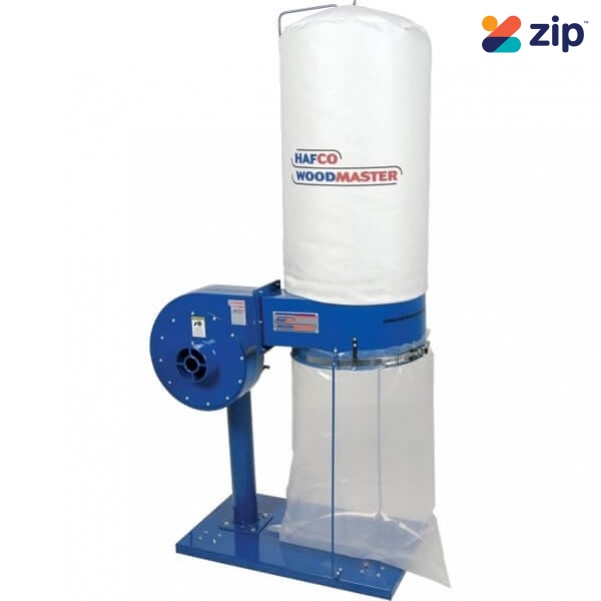

Hafco DC-2 - 240V 500cfm LPHV System Dust Collector W332

Overview:

LPHV = Low Pressure High Volume System
The dust and shavings of LPHV extractors are sucked through the impeller fan blade and then the waste falls into the lower bag, the air being exhausted through the top filter bag, collecting some of the fine dust on the way. This type of extraction shifts huge volumes of air at low pressure and they are very efficient at removing bulk waste such from Planers, Thicknessers & Wood Lathes etc, hence some people call them chip collectors. The down fall with all LPHV dust collector systems is when you reduce the intake hose from 100mm to 32mm the air flow volume is affected dramatically.

Features:

500cfm
Portable on wheels
Ø100mm single inlet
Quick-action clamps
5 Micron Fine Filter Bag
0.75kW / 1hp 240V motor
Magnetic safety switch

Specifications:

Type:Dust Collector
Airflow: 500 cfm
LPHV - Low Pressure High Volume: Yes
HPLV - High Pressure Low Volume: No
Inlets / Diameter (No. / mm): 1 x Ø100
(kW / hp)Motor Power: 0.75kW / 1hp
(V / amp)Voltage: 240V / 10AMP
Floor Space (W x D x H): 750 x 400 x 1550mm
Nett Weight: 30kg
