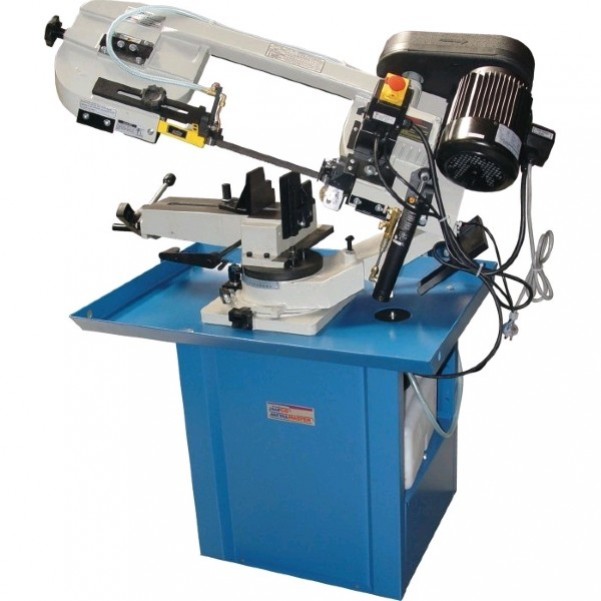

Hafco BS-7DS- 240V 0.75kW Swivel Head Metal Cutting Band Saw B008A
Manufactured in Taiwan
The BS-7DS medium duty swivel head metal cutting band saw has many features on offer with a double mitre swivel head capable of cutting up to 178mm diameter or 215 x 178mm in steel at 90º . There is a choice of four blade speeds via an adjustable 4 stage pulley system so that the cutting speed can be changed to suit a wide range of materials, whilst the built-in coolant system ensures maximum cutting efficiency and long blade life.
The cutting operation works automatically with the weight of the head providing the cutting force and a limit switch shutting the machine down when the cut is complete. The weight of the head is counterbalanced by an adjustable hydraulic damper to control the feed rate, an excellent machine choice for maintenance shops, medium steel fabrications, and engineering workshops.
Features:
-
215 x 178mm (W x H) rectangular capacity
-
Dual mitre cutting capabilities to 45º via swivelling head and sliding vice
-
Adjustable hydraulic feed cutting rate for multiple applications
-
Built-in coolant system for maximum cutting efficiency
-
Limit switch stops machine when cut is complete
-
Coolant system with flow control valve
-
Quick action material clamping lever
-
Adjustable blade roller guides provides accurate cutting
-
Adjustable 4-speed pulley drive system enabling 24-41-61-82mpm cutting speeds
-
Adjustable length stop for repetition cutting
-
Wire wheel brush to clean swarf from blade
-
Automatic electric cut-out switch
-
Heavy-duty 750W 240V fully enclosed fan-cooled motor
Specifications:
-
Operation Type: Swivel Head - Dual Mitre
-
Round at 90º: 178 mm
-
Round at 45º: 127 mm
-
Square at 90º: 178 mm
-
Square at 45º: 85 mm
-
Rectangle (W x H) at 90º: 215 x 178 mm
-
Rectangle (W x H) at 45º: 140 x 85 mm
-
Coolant System: Yes
-
Table Working Height: 850 mm
-
Cutting Head Beam Type: Manual
-
Cutting Head Beam Return: Manual Return
-
Cutting Head Down Feed Control: Adjustable Hydraulic
-
Vice Clamping Fixture: Manual - Quick Action
-
Blade Steps / Speeds: 24-41-61-82 m/min
-
Blade Size (L x W x T): 2362 x 19 x 0.8 mm
-
Motor Power (kW / hp): 0.75 kW / 1 hp
-
Voltage / Amperage: 240 V / 10 amp
-
Nett Weight: 165 kg
