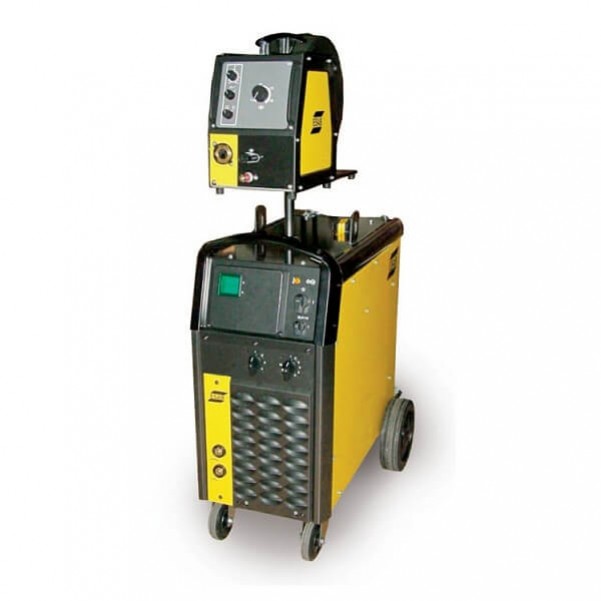

ESAB W1009680 - 230/460V Origo Mig 410 Package

This Product has been discontinued, please check the similar product Mig

Freight:
This item is a heavy and large item, freight might vary from different location, please contact us at Email or phone us on (07) 3326 1555 for a more accurate shipping quote and/or any special shipping arrangements you may require.

Delivery:
This is a heavy item more than 150 kg, please make sure you have the lifting device to load. Otherwise, please order a Hydraulic Tail Lift Service in the accessory section. Thanks.

Features:

Outstanding welding characteristics – high efficiency and quality welds
Sturdy galvanized metal casing
Wide current and voltage range – for multiple applications
Selectable inductance taps
Easy change of polarity – all types of cored wire
Digital meter – provides an accurate reading of the set welding parameters and will hold its display even after welding has finished
Idle mode – power and noise efficient; cooling fan works only when needed
Undercarriage trolley standard
Made in Poland

Specifications:

Input Voltage
- Model: Origo Mig 410
- Frequency: 60 Hz
- Phase: 3
- Voltage: 230/460 V
Power Specifications
- Current Range(A): 50-400 A
- Efficiency at Maximum Current: 71 %
- Open Circuit Power W: 360 W
- Open Circuit Voltage: 17-45 VAC
- Power Factor at Maximum Current: 0.98
- Protection Class: IP 23
- Voltage Range (V): 16.5-34 V
- Voltage Steps Minimum: 40
Operating Temp: -10 to 40 °C (14 to 104 °F)
Welding Output
- Model Duty Cycle Output Current Output Voltage
- Origo Mig 410 50 % 400 A 34 VAC
- Origo Mig 410 60 % 365 A 32 VAC
- Origo Mig 410 100 % 280 A 28 VAC
