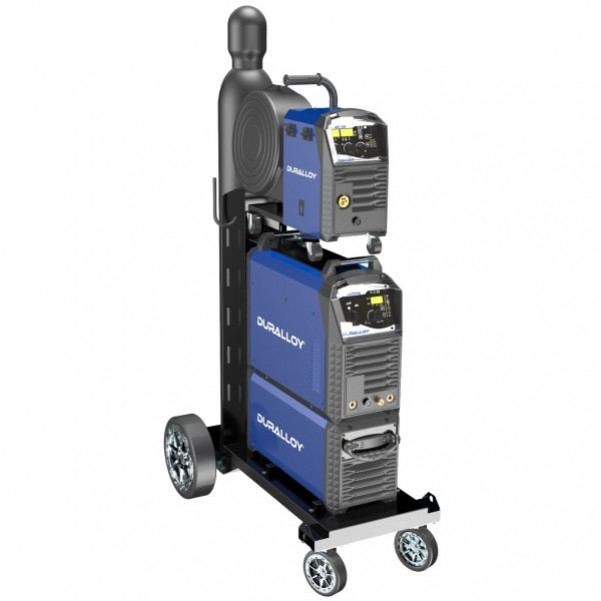

DURALLOY DA501MMIG - 501Multimig 415V Multiprocess Inverter Welding Machine
Includes:
- Power Source
- 4-Roll Drive Feeder
- 3M Earth Lead
- 3M MMA Arc Lead
- MB 36 Style 4M MIG Torch
- 10m Interconnection Kit
- Argon Regulator
- Owner’s Manual
- 0.9-1.2V Rollers
Features:
- Heavy duty 4-roll geared drive feed system
- 10 metre interconnection leads
- Built-in toolbox trolley
- Voltage Reduction Device (VRD)
- Industrial cable connectors (35-50)
- Industrial castors on power source and wirefeed
- Protective front fascia cover on power source and wire feeder
- 32 Amp primary plug fitted
- IP23S Rating
Applications:
- Heavy fabrication
- General fabrication
- Structural steel
Materials:
- Mild Steel
- Aluminium
- Stainless Steel
Specifications:
- Power Supply:415V 3 Phase
- Frequency: 50/60 Hz
- Input Power: 23 kW
- Input Current: 32A
- Duty Cycle(40oC 10min):
- 60%500A
- 100%400A
- Welding Current: 40-500 A (MIG)
- No Load Voltage: 68V
- Welding Voltage: 14-50 V (MIG)
- Wire Diameter: Fe:0.6/0.8/0.9/1.0/1.2/1.6 SS:0.8/0.9/1.0/1.2/1.6 Flux-Cored:0.8/0.9/1.0/1.2/1.6
- Protection Class: IP23S
- Power Factor: 0.75
