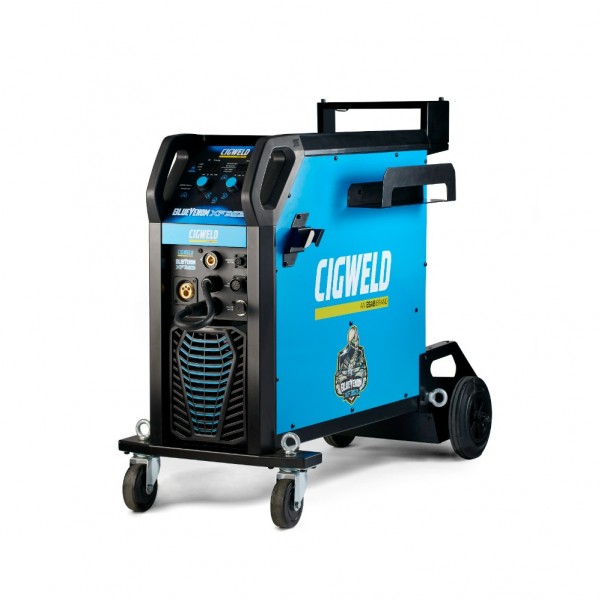

Cigweld W1400353 - BlueVenom XF353 – 3Ph, 400/415V MIG Welder

The new BlueVENOM™ XF353 is a 3in1 multi-process welding inverter that has been specifically engineered to be narrower in size for easy access in tight and constrained areas but also as a modular arc station! As a compact unit you will have access to Xtra Functions that allows the machine to be used for standard MIG / STICK / DC Lift-TIG processes, or as a Synergic MIG with Plate Thickness Selection as standard.

Includes:

• BlueVenom™ XF353 Power Source
• MIG Gun BZ36 "Style", 4m, Euro
• Work Clamp 300A with 4m Lead
• Twistlock Electrode Holder 400A with 4m Lead
• Feed Rolls: 0.9/1.2mm V Groove (fitted), 1.0/1.2mm U Groove, 0.9/1.2mm Gasless Knurled
• Gas Regulator/Flowmeter
• Quick Connect Gas Hose 3m
• Operating Manual

Features:

• Roll Wire Drive system
• 300mm Diameter Spool Capability and includes 200mm spool adapter
• MIG Gun holder and cable management bracket
• Engineered Gas Cylinder holder for up to ‘G’ Size cylinders
• 4-Point Lifting Lugs for safer and convenient maneuverability
• Locking brackets for 4R-Rover to avoid wirefeeder sliding
• MIG Adjustable Wire Burnback
• MIG Crater Fill function in 2T & 4T
• MIG Side door wire installation, side loader
• MIG Anti de-spooling safety feature
• MIG PulseMate™, Spool Gun & Push-Pull Gun Compatible
• STICK with Voltage Reduction Devise (VRD) built-in for Safe Welding
• STICK Hot Start
• STICK Arc Force
• TIG Foot Control Compatible
• TIG Dial Remote Torch Compatible

Specifications:

• Additional Features    Push Pull Gun Compatible, Spool Gun Compatible
• Brand    Cigweld
• Dimensions Power Source    1075 x 460 x 865mm
• Duty cycle    MIG: 350A @ 40%, STICK: 300A @ 40%, TIG: 350A @ 40%
• Generator Requirement    16.0kVa
• Material Thickness MIG    0.6-16.0mm
• Material Thickness STICK    2.0-25.0mm
• Material Thickness TIG    1.0-16.0mm
• Material Type    Mild Steel, Stainless Steel, Aluminium, Bronze
• Number of Phases    Three Phase
• Plug Type    Not Fitted
• Power Supply    415V
• Pulse Capable    Yes
• Pulse Capable MIG    Yes
• Pulse Capable STICK    No
• Pulse Capable TIG    No
• Usage    Industrial
• Warranty    3 Years + 6 months Extended Warranty
• Welding Process    MIG, MIG PULSE, STICK, TIG

*3-Year conditional warranty. See terms and conditions at cigweld.com.au or in the Operating Manual, included with the machine.

The new BlueVenom™ XF353 is a 3-in-1 multiprocess welding inverter that has been specifically engineered to be narrower in size for easy access in tight and constrained areas but also as a modular arc station!

As a compact unit you will have access to Xtra Functions that allows the machine to be used for standard MIG/STICK/TIG DC-Lift processes, or as a Synergic MIG with Plate Thickness Selection as standard. To take it a step further, the XF353 can connect to the All-New 4R-Rover™ remote wirefeed system (sold separately) - a plug n' play, 4 Roll geared wire drive unit that you can setup where you need it.

Need it on a gantry? No problem, with the 8m interconnection cable and in-built hanging mount, you can! PLUS, its designed specifically with a low mount handle making this little gem as compact a 300mm wire spool system can be!

EASY TO SET FOR PROFESSIONAL RESULTS Here's the kicker - want Pulse? Of course you do!

Turn your XF353 arc station into a single and double pulse work horse! Simply plug in the hand-held PulseMate™ pendant (sold separately) equipped with 8m of lead into the XF353 machine or 4R- Rover™ and start getting TIG like looking welds through our simple yet intuitive SimplePulse™ MIG system!

The BlueVenom™ XF353 is the perfect solution for light to medium fabrication, maintenance and industrial repairs in the workshop, worksite, shipyard, or marina without compromising on quality or professional performance! Use it with the included premium BZ36 MIG Gun or swap it out for a Push-Pull or Spool Gun (each sold separately) for more precise control

The XF353 can deliver awesome arc characteristics in the most popular processes of, MIG (QuickSet & Manual modes, Gas & Gasless operation, Single & Double Pulse MIG with the optional PulseMate™, STICK (MMA with VRD for extra safety) and TIG DC- Lift welding modes.
