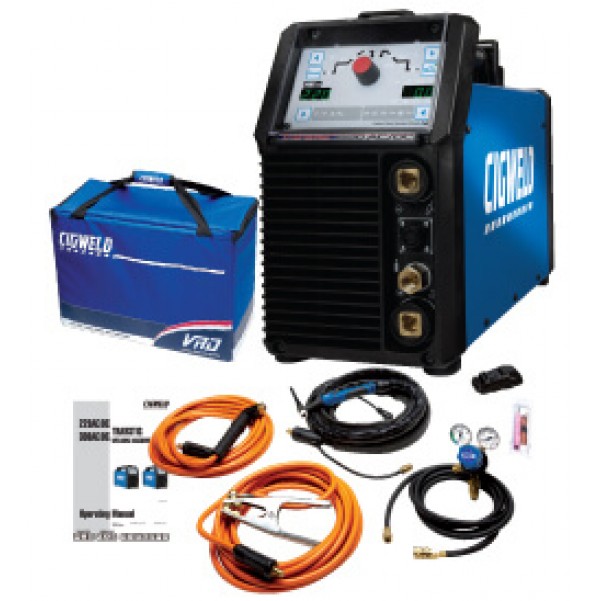

Cigweld W1007220 - 240V Transtig 220AC/DC Welding Inverter

This Product has been discontinued, please check the similar product Cigweld W1008205 - WeldSkill 205AC/DC Stick & Tig Portable Inverter Welder

Features:

Fully compliant to AS 60974.1-2006 rated to IP23S
Power Factor Correction (PFC) Improves product efficiency
Digital Voltage and Amperage Meters
Power source is fitted with HF start in TIG mode
3 Year Limited Warranty
Power source fitted with Pulse Welding capabilities in TIG mode
Can use up to 4.0mm electrode size
VRD Virtually eliminates electric shocks when not welding
Fail to Safe Shutdown
Spot Welding
Stores up to 100 welding jobs
Intelligent Fan Control

Specifications:

Process: AC/DC Lift TIG (GTAW), HF TIG (GTAW) & Stick (MMAW)
Supply Voltage: 240V +/- 15%
Nominal Supply Frequency: 50/60Hz
Factory Fitted Plug Rating: 15A
Number of Phases: 1
Effective Input Current I1eff: 14.7A
Welding Current Range STICK Mode (MMAW): 10-170A
TIG (GTAW): 3-220A
Open Circuit Voltage (VRD Active): <23V DC
STICK (MMAW) Welding Output, 40 Degrees, 10 min: 170A @ 40%, 26.8V, 140A @ 60%, 25.6V, 120A @ 100%, 24.8V
TIG (GTAW) Welding Output, 40 Degrees, 10 min: 220A @ 40%, 18.8V, 180A @ 60%, 17.2V, 160A @ 100%, 16.4V
Minimum Generator Requirement: 6kW (7.5kVA @ 0.8PF)*
Power Source Dimensions: 326mm H x 185mm W x 483mm D
Weight: 13.4kg
Protection Class: IP23S
Australian Standards: As 60974.1-2006 /IEC 60974-1
