Cigweld PP.TM175M23 - Transmig 175i+ MIG TIG STICK Power Pack

Cigweld PP.TM175M23 - Transmig 175i+ MIG TIG STICK Power Pack

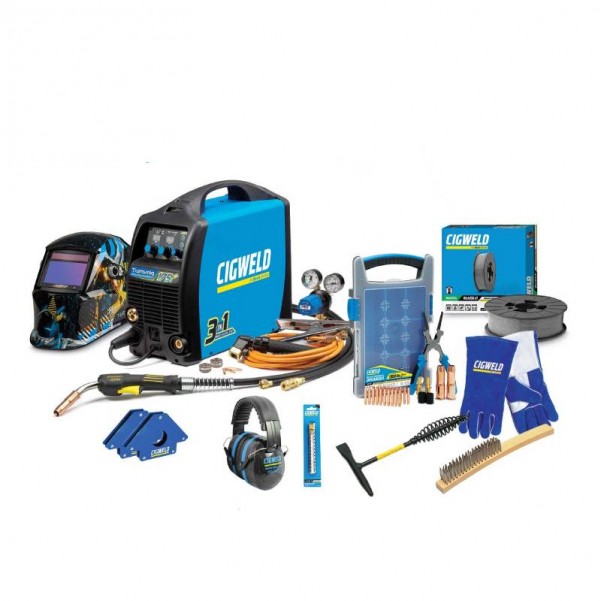

Includes:

  • Transmig 175i+ Plant, 10-185A, 240V/15A – W1005185

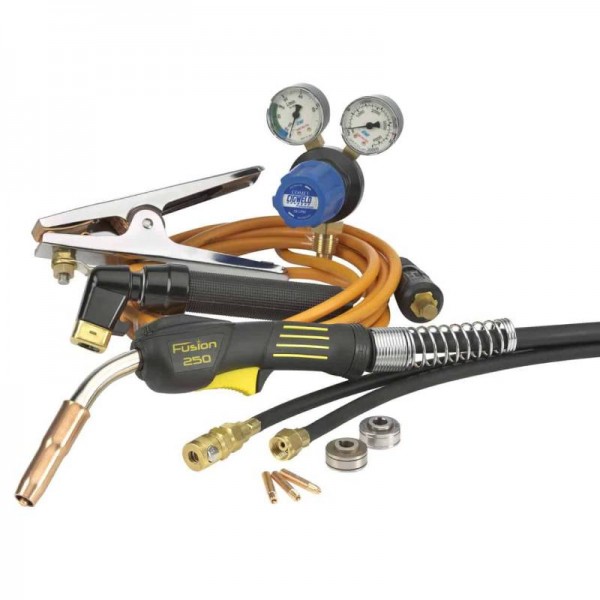

  • Front-End Kit Box TWE-2 with MIG Pliers – W4012300
  • Welding Helmet Shade 4/9-13 XC40 Terra – 454347
  • Heavy Duty Welding Gloves – Large – 646755
  • Earmuff Silencer Light Duty 32.5dB AS1270 – 455200
  • Wire Brush 4 Rows Straight Steel Bristles – 646363
  • Chipping Hammer Spring Handle – 646215
  • Magnetic Square & Clamp MEDIUM x 2 – 646764
  • Soapstone Holder with Soapstone (Eng Chalk) – 308578
  • WeldSkill Gasless 0.9mm 4.5kg = 1 Spool – WG4509

The CIGWELD TRANSMIG 175i+ is a self-contained single-phase multiprocess welding inverter that is capable of performing GMAW/FCAW (MIG), MMAW (Stick) and GTAW (Lift TIG) welding processes.

The unit is equipped with an integrated wire feed unit, a voltage reduction device (VRD applicable in Stick mode only), digital voltage and amperage meters, and a host of other features in order to fully satisfy the broad operating needs of the modern welding professional.

Features:

  • Integrated Wire Feed Unit Spools up to 5kg or 200mm
  • 240 Volt, 50/60Hz, 15 Amp Supply Lead Fitted to Power Source
  • Digital Amperage and Voltage Meters
  • Fully compliant with AS 60974.1-2006. Enclosure rated to IP23S - Designed for indoor & outdoor use.
  • Adjustable Burnback Control: The burnback control is used to adjust the amount of MIG wire that protrudes from the MIG torch after the completion of MIG welding.
  • Euro MIG Torch Connection
  • Adjustable Burnback Control: The burnback control is used to adjust the amount of MIG wire that protrudes from the MIG torch after the completion of MIG welding.
  • Arc Control (Inductance): The arc control operates in GMAW/FCAW (MIG) mode only and is used to adjust the intensity of the welding arc.
  • Maximum MIG Wire Size: 0.8mm: Solid & Stainless Steel 0.9mm: Gasless Wires 1.0mm: Aluminium
  • Maximum Electrode Size 4.0mm: Power Source is suitable for 2.0mm, 2.5mm, 3.2mm and 4.0mm electrode sizes.*
  • DC Lift TIG function. Provides smooth starting and running characteristics across a broad range of applications.
  • Standards Compliant Voltage Reduction Device
  • The current Range for this Power Source is 10A to 185A (MIG Mode) of DC Welding Output.
  • Over Temperature Cut Out Protection has been fitted to the Power Source
  • Suitable for Gas and Gasless Wires

Specifications:

  • Current Range: 10 - 185A MIG (GMAW/FCAW), 10 - 175A STICK (MMAW), 10 - 175A TIG (GTAW)
  • Dimensions: 410H x 210W x 450D mm
  • Duty Cycle: MIG (GMAW/FCAW): 185A @ 20%, 23.3V (40C, 10mins) STICK (MMAW): 175A @ 20%, 27.0V (40C, 10mins) TIG (GTAW): 175A @ 25%, 17.0V (40C, 10mins)
  • Generator Requirement: 9.5 kVA (at 0.8 Power Factor) 7.8 kW (at 1.0 Power Factor)
  • Processes: MIG (GMAW/FCAW), Stick (MMAW), Lift TIG (GTAW)
  • Supply Voltage: 240V +/- 15%, (15 Amp Plug)
  • Weight (Packed): 23kg
  • Weight (Power Source): 14.6kg
  • Supply Plug Lead: 15A
