BE 123 G11000-RELT Max - 11.0kVa (17HP) 4 Stroke 8500W MAX Powerease Deluxe Generator
Freight:
- This item is a heavy and large item, freight might vary from different locations, please contact us at Email or phone us on (07) 3363 0555 for a more accurate shipping quote and/or any special shipping arrangements you may require.
Delivery:
- This is a heavy item more than 100 kg, please make sure you have the lifting device to load. Otherwise, please order a Hydraulic Tail Lift Service in the accessory section. Thanks.
BE Deluxe House Series Generator
- Our Powerease Deluxe line of generators is a powerful & reliable choice for the mains failure house backup! This compact unit is the ideal mid-size generator. Featuring electric key start, IP66 weatherproof outlets, large muffler for quiet running compared to standard generators.
- The G11000-RELT MAX is not fitted with a M.E.N Link or RCD – This is designed for direct connection to a house/building for mains failure applications. Connection to a house/building must still be undertaken and set up by a qualified electrical contractor.
- It is recommended the electrical contractor installs a single phase 32A receptacle at the location of power intake to the building along with a manual changeover switch or Automatic Transfer Switch for fully automated mains failure usage.
Frame:
- Compact Deluxe Generator
- Black Powder Coated Heavy Duty Roll Frame
- Heavy Duty Anti-Vibration Mounts

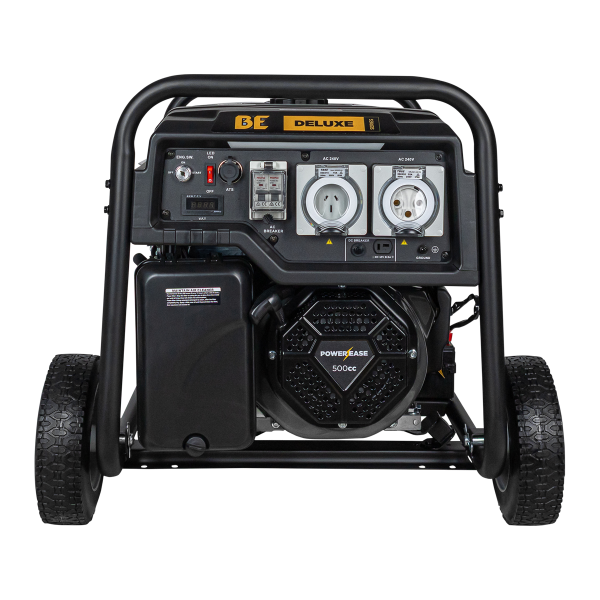

- House Ready Control Panel
- Digital V.F.T
- ATS Ready – Part # RAT 35607-YCK0110
- LED Work Light on Control Panel
- Weight 98 kg
- Dimensions: L 740 x W 576 x H 577 mm (w/o Wheels)
Engine:
- Powerease 4 Stroke, 17 hp Petrol Engine

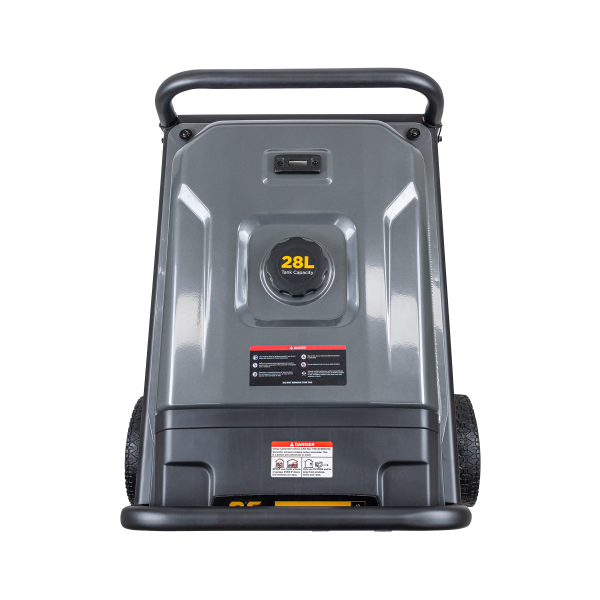

- Long Range 28 L Fuel Tank
- Electric/Recoil Start
- Low Oil Shutdown
- Safety Shut-Off Switch
Performance:
- 240 V AC Clean Power
- 8000W Running / 8500W Max Power / 11.0kVA Power & Watts
- AVR (Automatic Voltage Regulator) Keeps Consistent Clean Power
- 6+ Hour Run Time @ 100% Load
- 1 x 15A, 1 x 32A IP66 Weatherproof Outlets
- Single MCB (Mini Circuit Breaker)
Owners Manuals:
Part Sheets:
- 123 G11000-RELT Max_parts (pdf — 2 MB)
- 123 G11000-RELT Max_parts (pdf — 433 KB)
- 123 G11000-RELT Max_parts (pdf — 1 MB)
Generator Selection Guide
COMMON FORMULAS:
- 1KW = 1000W
- 1KVA = 800W
- 1HP = 750W
- 1KVA = 4Amps (Single phase)
- Watts = Volts x Amps
- Amps = Watts/Volts
General Rule #1
Compressors and other induction motors (e.g. Fridges, freezers and air conditioners) will require a minimum of 3 times the HP of the motor to the KVA to start. For example, an air conditioner with 1HP motor will require 3KVA every time that motor cycles in.
General Rule #2
Common Applications – Welders & Compressors:
- 120amp welder or 8CFM compressor requires a minimum of 5KVA
- 140amp welder or 10CFM compressor requires a minimum of 6KVA
- 160amp welder or 12CFM compressor requires a minimum of 7KVA
- 180amp welder or 14CFM compressor requires a minimum 8KVA
General Rule #3
To work out the generator size required, simply add the wattage of all appliances or construction tools likely to be used at the same time. Don’t forget to allow for any induction motors. Use the Common formulas above to calculate your minimum KVA required.
