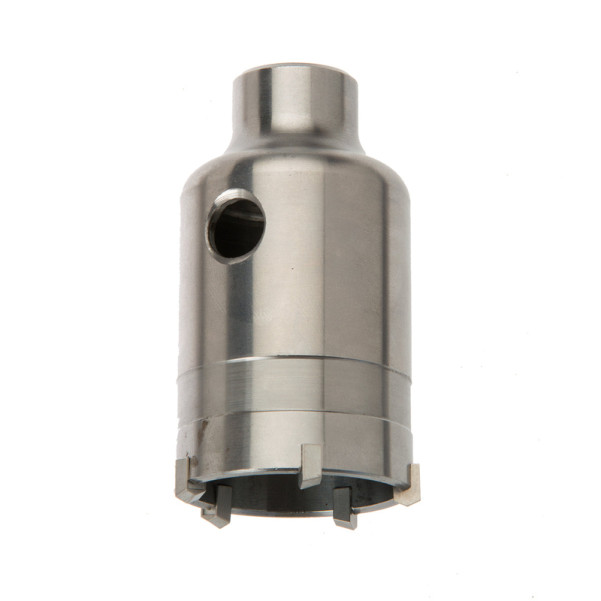

Armeg CL80S - 80mm HSM High Speed Masonry Core Drill

Click Image for Gallery

Armeg CL80S - 80mm HSM High Speed Masonry Core Drill

Features:

Rapid Action Masonry Core Drill – Optimised for SDS Plus Machines
Up to 35% Faster Drilling with Minimal Breakthrough
2.5mm Ultra-Thin Wall Design for Reduced Drag & Extreme Speed
Ball-Locking Pilot System – No Grub Screws, Quick & Easy Changeover
Ultra-Hard Tungsten Carbide Tips – Suitable for Hammer Action Use
Ideal for Brick, Block & Masonry Applications
Made in Sheffield – Trusted UK Engineering

High Speed Masonry Core can be used in:

Heavy duty concrete
General concrete
Hard bricks
Soft bricks - Very sutiable
Lightweight blocks - Very suitable
Natural stone
Constructional granite
Limestone

Ideal when working on:

Waste pipes
Water feed pipes
Cable entry / exit
Flue passage
Extractor fans
Exhausts
Dust extractor ducting

Tech-Tip:

When cleanliness of breakout is critical, turn off hammer action and use 'rotary only' mode for the last part of the drilling process

Recommended Speed:

Recommended speed for these cores is largely governed by the power tool itself. This is because they are designed to be used in power tools where in the majority of cases there is no facility to regulate the speed (SDS Plus, SDS Max machines etc.).
If used in a machine where speed regulation is possible, a general recommendation is the larger diameter of the core drill being used, the slower the speed.

Specifications:

Machine best suited for: SDS Plus
Unique characteristic: Unique Armeg original design ball-locking & pilot drill system eliminates the need for awkward grub screws
Core drill wall thickness: 2.5mm ultra thin wall, dramatically reduced drag
Teeth material: Ultra hard tungsten carbide tips
Operating action: Coring can be carried out in 'Rotary and Impact' mode or 'Rotary only' mode
Thread: M16 x 2.0
Recommended speed: If used in a machine where speed regulation is possible, a general recommendation is the larger diameter of the core drill being used, the slower the speed.
Technical Tip: When cleanliness of breakout is critical, turn off hammer action and use ‘rotary only’ mode for the last part of the drilling process.
Material recommendations: General Concrete, Hard Bricks, Soft Bricks, Lightweight Blocks, Natural Stone, Constructional Granite, Limestone
Made: In Sheffield, UK
